China Lifting Equipment Fully Electric Self Propelled Hydraulic Aerial Work Platform Scissor Lift Table Platform

Product Description

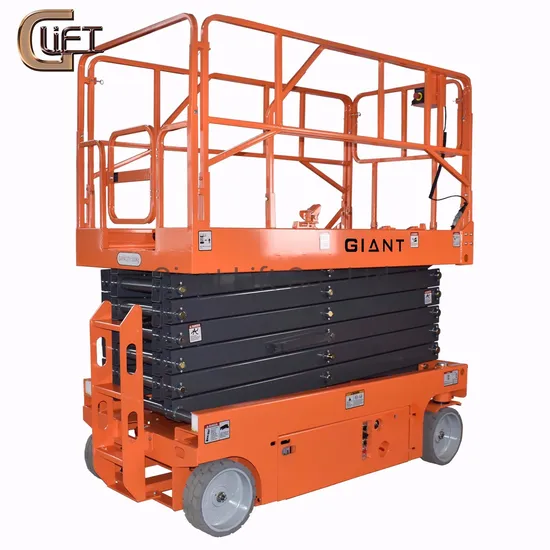

Giant Lift Fully Electric Self Propelled Aerial Work Platform(FSJY) Product Description
Our electric powered Hydraulic Scissor Lift Work Platforms are mainly used for aloft work, freight handling and supporting product to production line in factories, warehouses, stations, ports and airports etc. Our hydraulic work platform is made up of drive gear, platform, shear-like yoke, chassis and electric control cabinet as well as the hydraulic power unit composed of oil pump, motor and solenoid valve. Our products are energy-saving and environmentally friendly with less noise and no emission. We have options of Semi-Electric (Move manually and lift automatically) and Fully electric (Self-Propelled) with adjustable moving speed. The maximum working height is from 6m to 16m. There are many safety precautions, for example, explosion-proof valves, spillover valve and emergency decline valve etc...
Giant semi-electric scissor lift can work without being limited by the road conditions.
SJY: Semi-Electric Work Platform
SJX: Self-Propelled work platform (Handle Control)
FSJY: Self-Propelled work platform (Stick Control)

Electric-Drive System: Effective and energy-saving electric-drive system features zero emission and low noise, enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.(SJX and FSJY only) Narrow Structure: Narrow structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier Emergency descend button: The safety feature allows you to bring down the platform in case of power failure. Over Loading Limit: Ensure the safety of occupant CAN Bus Technology (FSJY Only)
Product Parameters

Model No.		FSJY6	FSJY7.4	FSJY0608	FSJY0810	FSJY1012	FSJY1214
Max.platform height	mm	6000	7400	6000	8000	10000	11800
Min.platform height	mm	1010	1130	1190	1315	1440	1565
Min.ground clearance(folding)	mm	90	90	110	110	110	110
Min.ground clearance(rising)	mm	-	-	20	20	20	20
Lift rated capacity	kg	300	250	300	300	300	230
Platform exend capacity	kg	100	80	113	113	113	113
Platform size	mm	1870x730	1870x730	2270x1150	2270x1150	2270x1150	2270x1150
Platform exend length	mm	900	900	900	900	900	900
Drive speed(platform stowed)	km/h	3~4	3~4	3.5	3.5	3.5	3.5
Drive speed(platform elevated)	km/h	0.6~1	0.6~1	0.8	0.8	0.8	0.8
Min turning radius	mm	1900	1900	2100	2100	2100	2100
Max.climbing capacity	%	10~15	10~15	20	20	20	20
Driving wheel size	mm	Φ250x80	Φ250x80	Φ381x127	Φ381x127	Φ381x127	Φ381x127
Caster size	in	8	8	Φ381x127	Φ381x127	Φ381x127	Φ381x127
Driving motor	V/KW	2x24/0.5	2x24/0.5	Power pack 24V/3kw
Lifting motor	V/KW	24/2.2	24/2.2
Battery	V/Ah	2x12/150	2x12/150	4x6/200	4x6/200	4x6/270	4x6/270
Charger	V/A	24/20	24/20	24/25	24/25	24/25	24/25
Overall length	mm	2030	2030	2400	2400	2400	2400
Overall width	mm	900	900	1150	1150	1150	1150
Overall height	mm	2120	2240	2150	2275	2400	2520
Net weight	kg	1300	1400	1900	2080	2490	2760

Similar Products
FAQ
Q1: Are you a factory or a trading company?
A1:We are a combination of both, we focused on manufacturing material handling product such as lift tables, manual & electric pallet trucks and lifting platforms over 35 years, we also exporting manual & electric chain hoist, lever hoisting, lifting clamp and steel jack. We are your ideal choice for one stop purchase with our compete line of industrial lifting/moving equipment
Q2: Can Giant lift provide customized products? OEM products or ODM products?
A2: Yes, Giant lift can provide customized products according to your requirement. Both OEM and ODM are acceptable.
Q3: Can we print the LOGO on products?
A3: Yes, the OEM is available with the permission of our customers.
Q4: How do you control your quality?
A4: 1. We only select high-quality steel material from famous steel group
2. Standardized production process with traceable ID Card, every part can be tracked to the original records.
3. 100% finished product testing before shipping.
4. We accept third party product inspections.
5. ISO9001 Quality management system certificated factory
6. Supervised container loading process, ensures the last step security
Q5: How long is the warranty on your products?
A5: We provide 12 months warranty for all of our product, excluding wear parts such as wheels, tire or hydraulic oil
Q6: What's the lead time for production?
A6: Usually around 10-15 days after payment received, around 30 days during new year's or national holidays.
Q7: What Payment terms do you accept?
A7: T/T or L/C, if you want any other method please contact sales
Q8: What are your advantages compared to the others?
A8: Unique products, with customized service. Timely production and delivery, time is money. Market protection service, long term business strategy.

---
