Features and Benefits● 2.5 kV fully isolated (power and data) RS-232 transceiver
● isoPower integrated, isolated dc-to-dc converter
● 460 kbps data rate
● 1 Tx and 1 Rx
● Meets EIA/TIA-232E specifications
● ESD protection on RIN and TOUT pins
±8 kV: contact discharge
±15 kV: air gap discharge
● 0.1 μF charge pump capacitors
● High common-mode transient immunity: >25 kV/μs
● Safety and regulatory approvals
UL recognition
2500 V rms for 1 minute per UL 1577
VDE Certificate of Conformity (pending)
DIN EN 60747-5-2 (VDE 0884 Teil 2): 2003-01
CSA Component Acceptance Notice #5A (pending)
● Operating temperature range: −40°C to +85°C
● Wide body, 20-lead SOIC package
Product Details

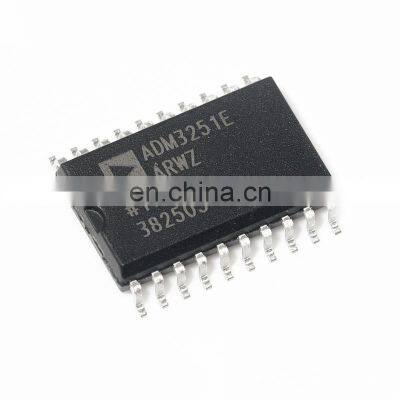

The ADM3251E is a high speed, 2.5 kV fully isolated, single- channel RS-232/V.28 transceiver device that operates from a single 5 V power supply. Due to the high ESD protection on the RIN and TOUT pins, the device is ideally suited for operation in electrically harsh environments or where RS-232 cables are frequently being plugged and unplugged.The ADM3251E incorporates dual-channel digital isolators with isoPower™ integrated, isolated power. There is no requirement to use a separate isolated dc-to-dc converter. Chip-scale transformer iCoupler® technology from Analog Devices, Inc., is used both for the isolation of the logic signals as well as for the inte- grated dc-to-dc converter. The result is a total isolation solution.The ADM3251E contains isoPower technology that uses high frequency switching elements to transfer power through thetransformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to Application Note AN-0971, Control of Radiated Emissions with isoPower Devices, for details on board layout considerations. The ADM3251E conforms to the EIA/TIA-232E and ITU-T V. 28 specifications and operates at data rates up to 460 kbps. Four external 0.1 μF charge pump capacitors are used for the voltage doubler/inverter, permitting operation from a single 5 V supply.The ADM3251E is available in a 20-lead, wide body SOIC package and is specified over the −40°C to +85°C temperature range.
Applications
● High noise data communications
● Industrial communications
● General-purpose RS-232 data links
● Industrial/telecommunications diagnostic ports
● Medical equipment
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
