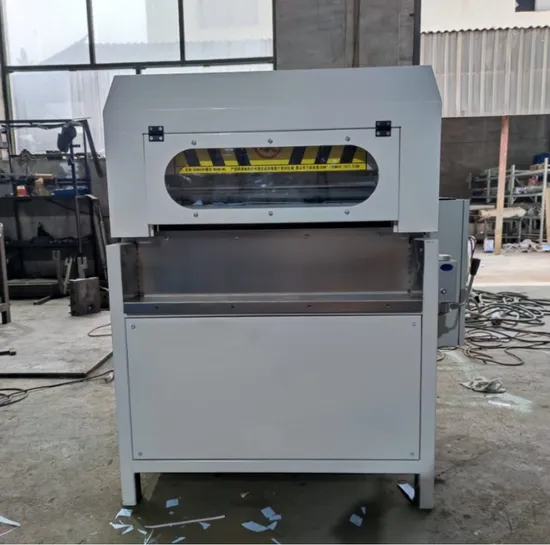

China Rubber Silica Gel Cutting Machine Rubber Slicing Machine

Product Description

Description: Our "Rubber Strip Cutting Machine" is optimized in structure.With glass plates positioning in front makes the operation more secure. Feeding platform is made of stainless steel. 2.The blade of the machine is alloy inlaid high speed wear-resistant material, sharp and long life service.
3.PLC+HMI control. Rubber feeding is controlled by PLC and stepper motor,with mechanical-spring material press roller to make the rubber sheet feeding more accurate and smooth,improving the cut precision for the rubber strip.
Easy operation, operator just inputs the desired width in the computer,the right width strip will be cut continuously.During cutting process, you can freely adjust the width of cut material as per your actual need.
4.Our "Rubber Strip Cutting Machine" combines advanced automatic mechanical and electric integration system,it overcome the problem for the normal "strip cutting machine " whose transmission parts could be wore after long time use.
Technical Specification:

Model	XQ-450	XQ-620	XQ-820	XQ-1000
Max. feeding rubber width(mm)	450	620	820	1000
Max. cutting rubber thickness(mm)	20	20	20	20
Max. cut stroke (strip width:mm)	50-70	50-70	50-70	50-70
Cut efficiency	86 times/min	86 times/min	86 times/min	86 times/min
Cut precision	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Motor power(KW)	1.5	1.5	3	3
Dimension(LxWxH:mm)	1050x700x1100	1150x850x1100	1400x1100x1200	1450x1240x1230
Weight(Kg)	500	750	840	970

Packaging & Shipping
Our Services
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients. We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc. Our business principle is that : Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".

---
