Powerful Precision with High-Speed CNC Drilling, Milling, and Turning Slant Bed Machine Center.

Product Description

Powerful Precision with High-Speed CNC Drilling, Milling, and Turning Slant Bed Machine Center.
Product Description

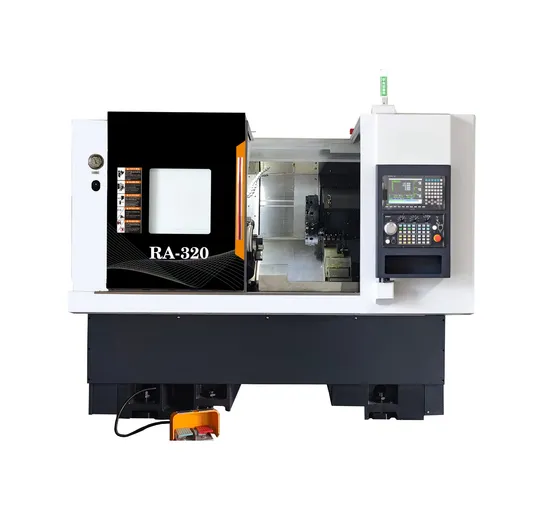

Unleash the power of precision with our High-Speed CNC Drilling, Milling, and Turning Slant Bed Machine Center. Designed for exceptional accuracy and efficiency, this state-of-the-art machine is your ultimate solution for all complex industrial machining tasks. Experience unparalleled productivity and precision engineering that meets the highest standards of performance.

Processing Capability			Unit	RA-320
Processing Capability	Maximum bed swivel diameter		mm	Φ500
	Maximum machining diameter		mm	400
	Maximum machining diameter on the tool holder		mm	Φ220
	Maximum processing length		mm	340
	Maximum bar through-hole diameter		mm	Φ46
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-5
	Spindle through-hole diameter		mm	Φ56
	Maximum spindle speed		rpm	4500
	Hydraulic cylinders/chucks		Inch	6''
Axis feed	Axis travel	X-Axis	mm	250
		Z-Axis	mm	400
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 35 (ball)
Turret	Number of tool positions		pcs	80-12T
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ32
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	350
	Tailstock Sleeve Taper		mm	Morse #4
	Tailstock Sleeve Diameter		mm	Φ60
	Tailstock sleeve travel		mm	80

The CNC turret lathe from Dongguan Luotuo Industrial Co., Ltd is an epitome of cutting-edge technology widely embraced across diverse manufacturing sectors. Its versatility spans the meticulous processing of automotive components, mechanical parts, molds, shafts, wheels, and various intricate metal parts. Engineered to excel in high-volume production, it promises unparalleled precision and adaptability for complex shapes and diverse materials, significantly boosting enterprise competitiveness and productivity.
• High-precision machining: Designed to adhere to the highest precision machining standards, our Industrial Cutting Tools Lathe Machine delivers exceptional accuracy for ultra-fine cutting tasks. It guarantees flawless internal and external precision, outstanding roundness, and perfect coaxiality, ensuring every component meets precise specifications.
• Multiple processes: This all-in-one versatile machine effortlessly manages a spectrum of complex and varied processing operations. From radial and axial cutting to drilling, tapping, hobbing, scribing, and drawing, it provides comprehensive multi-process capabilities within a single robust solution, simplifying your manufacturing workflow.
• Clamping and positioning the workpiece:
The gripper's primary function is to secure the workpiece firmly, maintaining its fixed position throughout the machining process. This reliable clamping ensures the workpiece remains perfectly aligned with the cutting tool for superior machining accuracy.
By ensuring meticulous and stable positioning, the gripper upholds the workpiece's precise alignment with the cutting tool, guaranteeing exceptional machining accuracy and quality.
• Solve special clamping problems:
For the intricate machining of holes, shafts, slots, and threads in non-bushing or non-wheel parts, specialized fixtures offer precise and customized solutions. These fixtures are purposefully designed to tackle clamping challenges where standard fixtures fall short.
These expertly designed specialized fixtures are tailored to meet specific machining requirements, effectively solving clamping challenges that conventional fixtures cannot address, ensuring precise and efficient operations.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Discover unparalleled processing conditions within a cutting-edge production environment designed for excellence.
Our avant-garde imported equipment, featuring horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, guarantees superior workpiece precision. This enhancement significantly elevates assembly accuracy and prolongs performance durability.
• State-of-the-Art Detection Techniques
Positioning accuracy undergoes meticulous testing and precise calibration via advanced laser technology, adhering strictly to the rigorous German VDI3411 inspection standards (5 tests per standard).
Every machine tool is subjected to comprehensive processing tests before shipment, ensuring they not only meet but surpass actual processing accuracy benchmarks.
Product sample
• Experience unparalleled efficiency with our Vertical CNC Drilling Machine Center, where cutting-edge milling, precision drilling, and high-speed tapping functionalities converge seamlessly to redefine your manufacturing process.
• Master the art of precision with our CNC machine, meticulously engineered to handle an extensive array of materials, including aluminum, steel, copper, and diverse non-metal profiles, ensuring impeccable results every time.
• Elevate your production capabilities across a broad spectrum of industries. From 3C electronics and rail transportation to aerospace technology and linear module guide rails, our versatile CNC machining solutions empower you to achieve unmatched excellence and efficiency in your operations.
Packaging & Shipping
•Highly Protective: Our packaging solutions ensure that the Vertical CNC Drilling Machine Center remains impeccably safe and secure during transit, providing unmatched protection against any potential damage.
•Structural Stability: Expertly designed, our packaging preserves the machine's structural integrity, ensuring every component arrives in flawless condition, ready for seamless operation.
•Environmentally Friendly and Recyclable: Upholding our commitment to sustainability, our packaging materials are not only robust but also eco-friendly and fully recyclable, thereby minimizing environmental impact.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments with a 40% initial deposit required upon ordering and the remaining 60% balance due before shipment.
2. What are your trade terms?
A: Our trade terms include FOB, CFR, and CIF, offering you the flexibility to choose what suits you best.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we can have your order ready within 30 days. Custom or special machines might require additional time. Please place your order according to our provided delivery schedule.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, and we proudly offer a comprehensive one-year warranty.
5. How are the machines packaged?
A: Each machine is meticulously packed in a sturdy wooden case to ensure it reaches you in perfect condition.
6. How can I choose the most suitable machines?
A: Simply provide us with your specifications, and we will recommend the most suitable model for your needs. You also have the option to select the exact model yourself.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for you.

---
