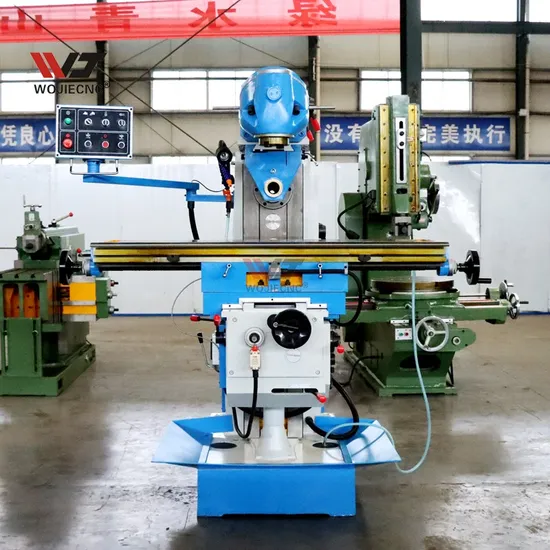

Wojie X6436 Universal Milling with ISO 50 Tool Milling Machine

Product Description

Product Description
Universal milling and drilling machine is a kind of general metal cutting machine tool.Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product Parameters

Specifications	Units	X6436
Table size	mm	1500×360
(X/Y) table travel	mm	1000/320/400
T slot(number-width-pitch)	mm	3-18*80
Spindle taper		IS0 40 (H),IS0 40 (V)
Spindle speed range(steps)	rpm	48-1660(12)
Spindle speed range(steps)horizontal		40-1300(12)
Distance between spindle nose and table surface	mm	150-550
Distance from horizontal spindle axis to worktable surface	mm	0-400
Feed motor power	Kw	1.1
Rotary head rotation angle		360°
Spindle motor power	Kw	4(V/H)
Overall dimension	kg	2550×2050×2050
Weight	mm	2580

Detailed Photos

ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
