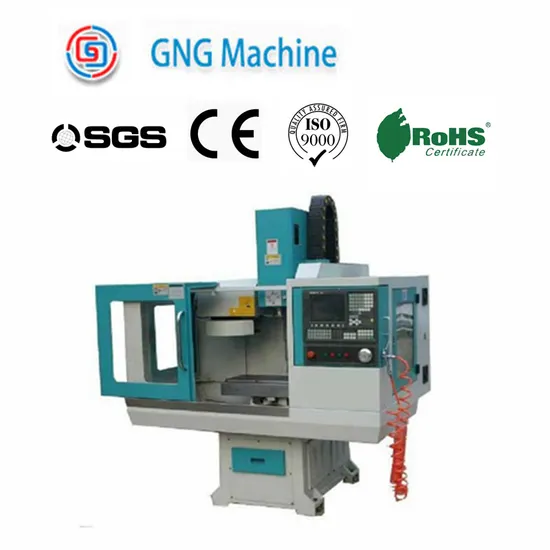

Electric CNC Milling Center Vmc330L

Product Description

Min.Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: VMC330L
Type: Vertical
CNC or Not: CNC
Voltage: 380V
Power(W): 2200W
Weight: 700kgs
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 60days after payment
Specifications
Able to mill steel,copper,aluminum,wood and plastic
Taiwan spindle,taiwan linear guideways
Conrroller:GSK218M or SIEMENS 802C

NO.	ITEM					Specification
1	Table size L(mm)× W(mm)					690× 210
2	T slot QTY /width/center distance(mm)					3-16-63
3	Maximum load(KG)					100
4	X travel (mm)					330
5	Y travel (mm)					220
6	Z travel (mm)					320
7	Spindle nose to table (mm)					90-410
8	Spindle center to column (mm)					280
9	Spindle taper					BT30
10	Max. spindle speed (Rpm)					6000 or 8000
11	Main motor ( kW )					2.2
12	Feed motor	X torque ( N. M )				3.3
		Y torque ( N. M )				4
		Ztorque ( N. M )				5
		Max. install size			X	Square 90× 90diameter φ 80
					YZ	Square 110× 110diameter φ 95
13	Rapid moving speed (m/min. )					10
14	Cutting speed ( mm/min )					1-4000
15	Ball screw ( diametermm/pitch ) mm					20/5
16	Linear guide way width ( mm )					20
17	Accuracy		Positioning accuracy (mm)			0.02
			Repeatability accuracy (mm)			0.01
18	Tool changer		Funnel type (optional ) BT30			6
			Tool changing time (s)			8
19	Air pressure Mpa					0.6
20	Machine weight (kg)			Frame		360
				Complete machine		700
21	Machine overall size: L(mm)× W(mm)× H(mm)			Frame		720× 860× 1160
				Complete machine		1200× 1100× 2000

FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.
Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.
Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)
Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.
Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.

---
