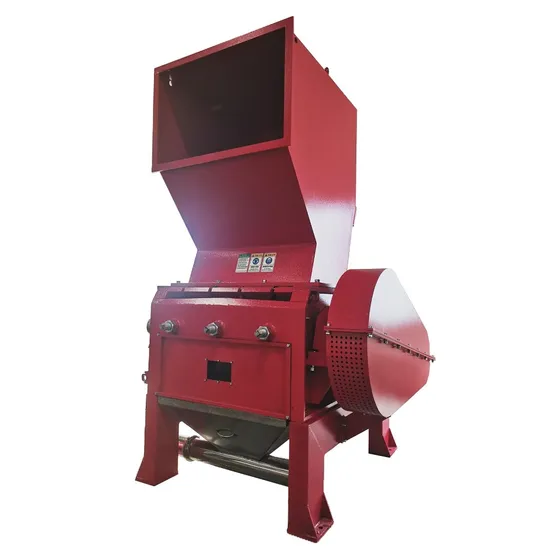

Advanced Plastic Waste Crusher Machine for PPR/PVC/Pb Plastic Pipe Recycling

Product Description

Product Description
Granulators are high-speed cutting machines that only crush nonferrous metal materials such as PP, PE, PET, PVC, and other waste materials that are less hard, fragile, and have a certain toughness, such as plastic and rubber products. Metallic materials or hard foreign objects are not permitted to enter the crushing chamber during the crushing process.
The size of the screen aperture can determine the material size.

Granulators are simple to operate and maintain, making it an excellent choice for primary shredding in recycling plants.
Our granulators have the following features:
1-It is made of high-strength carbon steel welding.
2-The box body is designed to be tilted in half, and equipped with a hydraulic automatic opening and closing device.
3-The screen bracket is equipped with a hydraulic automatic opening and closing device, which reduces the maintenance time.
4-Various cutter configurations, can be adjusted according to different material properties.
5-The overall design of the bearing seat is processed and formed, with high strength and is not easy to damage.
6-outer bearing seat is separated from the case, which can prevent dust impurities from entering it.
Detailed Photos
Product Parameters
Medium Size Granulator

Model/Item	LG3280	LG4280	LG42100	LG42120
Dimension L/W/H(mm)	1586x1568x1814	1770x1642x2425	1770x1842x2425	1760x2221x2530
Cutting Chamber C/D(mm)	834x360	834x480	1034x480	1234x425
E(mm)	1369	1842	1842	1947
Rotor-knives(PCS)	3*2	3*2	3*2	3*2
Stator-knives(PCS)	2x2	2x2	2x2	2x2
Main Motor Power(KW)	22	37	45	45
Weight(KG)	1730	2800	3230	4040

Heavy Duty Granulator

Model/Item	LG52100	LG52120	LG66120
Dimension L/W/H(mm)	2119x2025x2984	2070x2225x2984	2410x2320x4340
Cutting Chamber C/D(mm)	1034x670	1234x670	1234x800
E(mm)	2236	2236	3214
Rotor-knives(PCS)	5*2	5*2	5*2
Stator-knives(PCS)	2x2/2x3	2x2/2x3	2x2/2x3
Main Motor Power(KW)	55	75	90
Weight(KG)	4200	5300	7650
