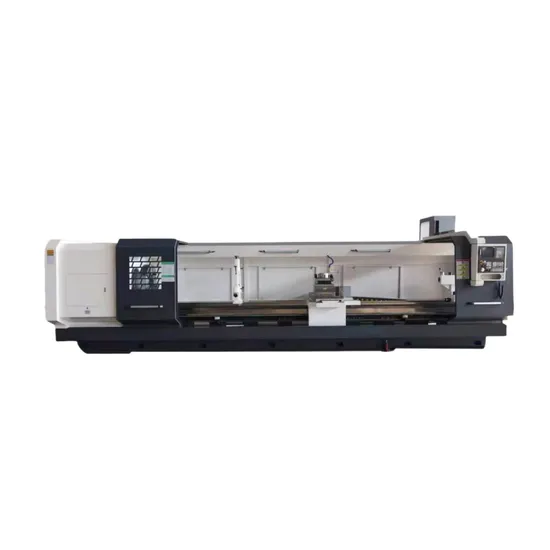

Qk1353 Chinese Manufacturer Oil Lathe Pipe Threading Lathe

Product Description

Specification Parameter

Specification		Unit	QK1335	QK1343	QK1353	QK1363
Max. swing over bed dia.		mm	1000	1000	1250	1400
Max. swing over cross slide dia.		mm	610	610	860	960
Max. length of workpiece		mm	1500/3000
Width of bed		mm	755		755	755/1100
Spindle bore		mm	360	440	540	640
Power of spindle motor		kw	22		22	37
Mode of spindle speed		/	Two gears, stepless in gears
Spindle speed range		r/min	L: 30-130 H: 65-260	L: 23-120 H: 65-258	L: 23-120 H: 65-258	L: 2-90 H: 65-120
X/Z axis travel		mm	X:550 Z:1250		X:570 Z:1250
X/Z rapid traverse speed		mm/min	1400		2000
X axis motor	Speed	r/min	1500		2000
	Torque	N.m	18		22
	Power	kw	2.8		2.8
Z axis motor	Speed	r/min	1500		2000
	Torque	N.m	22		30
	Power	kw	3.5		3.5
Tailstock quill	Diameter	mm	140		160
	Travel	mm	300		300
	Taper	/	Morse 6		Morse 6
Turret	Type		Vertical four station		Vertical four station
Chuck			780 4 jaw chuck	1000 4 jaw chuck	4 jaw chuck
CNC control system			GSK, FANUC, SIEMENS
Positioning accuracy		mm	0.02		0.04
Repeatability		mm	0.01		0.02
Overall dimension		mm	5000*2200*2100	5000*2200*2100	5000*2800*2200	5300*2800*2800
Net weight		T	12	14	18	19

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
