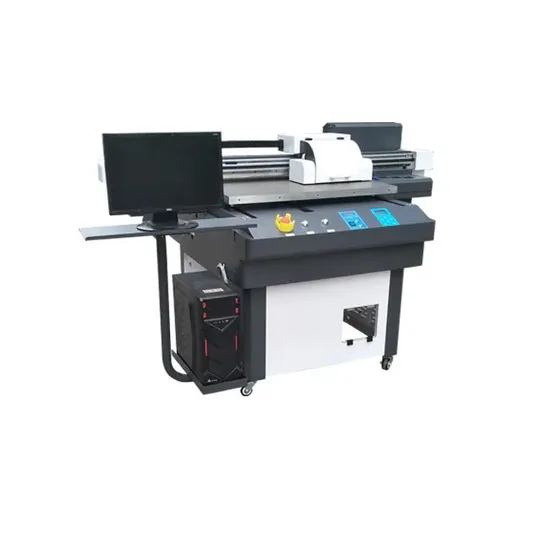

3 Head UV Flatbed Printer Machine 6090cm

Product Description

3 head UV flatbed printer machine 6090CM
Product application:
A1 Small Format 60cm*90cm White and Varnish Ink UV Printer is suitable for producing different patterns which contain relief, hollow out, flat print on different material. It is widely used on glass, wooden board, metal board, ceramic, leather, PVC, acrylic etc. It makes products value higher.
Optional Unit:
Device for bottle(Professional printing solutions) Just need customize one piece of rotary device, UV6090 could realize flatbed printing and cylinder printing.

Model	RB6090
Power	Power consume	W	300
	Power supply	AC	220V, 50Hz
	Power Connector	Three-Socket
Print head	Brand	Epson	Japan
	Item No.	Tx800
	Number	2 Heads/3 Heads
	Print head Nozzle	nozzle	6*180
	Printing Resolution	1440*1440 dpi
Ink	Ink Type	UV ink
	Ink Color	2 heads: 7 colors(C/M/Y/K/LC/Lm/W) without varnish, 3 heads: 8 colors(C/M/Y/K/LC/Lm/W/V) with varnish
	Ink Supply System	Negative Pressure Continuous Ink Supply System
	Ink Capacity	1000ml of each bottle
	Ink Consume	10ml/m2
Print Speed	360*360dpi	4 pass	3 m2/h
	720*720dpi	6 pass	1.5 m2/h
	1440*1440 dpi	8 pass	0.75 m2/h
Medium	Max medium height	100mm
	Medium dipose	Standard automatic feeding system
	Medium compatibility	General width inkjet medium
	Medium Type	Glass/wooden board/metal board, ceramic, leather, pvc, acrylic etc
Operation Environment	Temperature	20-25°C
	Humidity	40-70 RH
Size	Max printing size	60*90 cm
	Max medium width	60 cm
	Machine Dimension	160*160*120 cm
	Package Dimension	175*169*132 cm
	NW/GW	366/370 KG
Warranty	One year for body frame(Except print head)

FAQ:
1. What materials can UV printer print on ?
printers are multi-functional printers: it can print on any materials such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc...
2.Can LED UV printer print embossing effect?
Yes, it can print embossing effect, for further information or samples pics, please contact our representative salesman.
3.Does it must be sprayed a pre-coating?
some material need pre-coating , such as metal, glass, etc
4.How can we start to use the printer?
We will send the manual and teaching video with the package of the printer. Before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions. We will also offer excellent service by providing free technical support online.
5.What about the warranty?
Our factory provide one year warranty: any parts (except print head, ink pump and ink cartridges) questions on normal use, will provide new ones within one year(not include shipping cost). Beyond one year, only charge at cost.
6. what's the printing cost?
Usually,1 square meters need cost about $0.8.
Printing cost is very low.
7.where can I buy the spare parts and inks?
Our factory also provide spare parts and inks, you can buy from our factory directly or other suppliers in your local market.
8.what about maintenance of the printer?
About maintenance, we suggest to power on the printer once a day. If you don't use the printer more than 3 days, please clean the print head with cleaning liquid .

---
