Egg Sorting Machine/Egg Weight Grader/Egg Grading Machine

Product Description

egg sorting machine/egg weight grader/egg grading machine

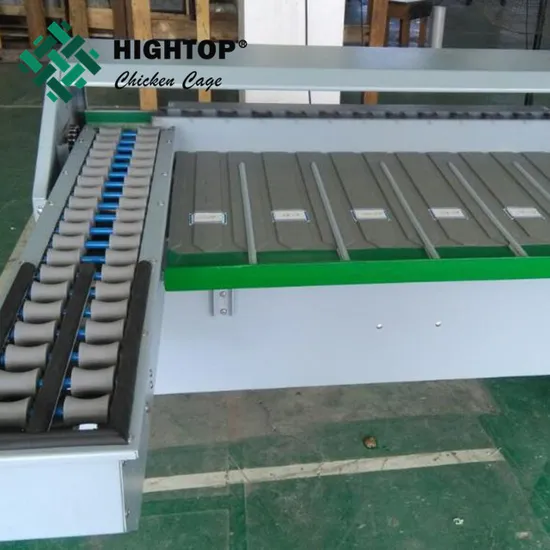

Instruction of egg grading machine:
1. Workers put the eggs onto the roller belt manually
2. The roller belt will convey the eggs into the candling part, light will come out from under the eggs and the light will
penetrate the eggs and at the same time workers can select out stale eggs, cracked eggs, black-cored eggs, mildewed eggs;
3. After the candling, the good eggs will be conveyed into the grading part and they will be divided into several grades by
weight, eggs of different weight will fall down onto different channels and eggs of the same weight will fall down onto the same
channel, then grading is finished.
4. The workers collect the eggs from different channels into different egg trays manually
Automatic egg collection machine
Automatic egg collection machine is used to collect eggs. Saves time and manpower, and reduce the rate
of damage eggs. Egg damage rate: less than 0.1%.The automatic egg collection machine suitable for 3 tiers,
4 tiers, 5 tiers layer cage.

Capacity	10000eggs/hour	5400pcs/h	4000pcs/h
Material	Carbon steel	Carbon steel	Carbon steel
Precision	±0.5g	±0.5g	±0.5g
Grade	5	5	7
Power	600W	200W	200W
Voltage	380V	220V	220V
L* W* H	4200*3400*1050(mm)	1820*1620*1050(mm)	1438*1320*980(mm)
Net weight	540KG	260KG	160KG
Gross weight	750KG	190KG	200KG
Function	Grading eggs by weight	Grading eggs by weight	Grading eggs by weight

Q: I need a complete equipment system, and also need a best price, what should I do?

A: 1. Chicken House Size (length x width x height).

2.If for Broiler Chicken, Quantity and Final Weight to Sell in Market.

3.If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity.

4.Maximum and Minimum Temperature of Farm Location.

5.House Type: close type of two side bricks building wall with 36" fans and air inlets, or open type of using curtain in two sides.

Q: How many years it can use?

A: more than 15-20 Years

Q: Why choose fan?

Very effective to improve the plant's high temperature and hot environment,so that plant temperature quickly decline in 10 minutes.

Q: How is your Payment term?

A:Generally,our payment term is T/T 30% in advance and the balance 70% against the copy of B/L.Other payment term we can also discuss.

Q: How is your delivery time ?

A: We always prepare enough stock material for your urgent requirement,the delivery time is 7 days for all the stock material. We"ll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

---
