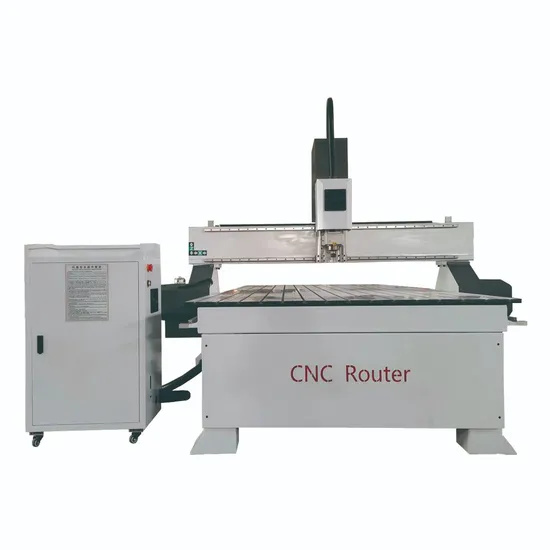

Hot Sale MDF Carving Wood Router Machine Price Acrylic PVC Cutting 3D 3 Axis Wood CNC Router Machine Price

Product Description

Hot sale MDF Carving Wood Router Machine Price Acrylic PVC Cutting 3d 3 Axis Wood CNC Router Machine Price
Product Description
Features
1.The whole machine adopts a heavy-duty steel structure with full welding +vibration aging + quenching treatment process. The side wall of the fuselage is a whole cast iron side wall. The whole machine is up to about 3.5 tons. The whole bed and steel castings have strong rigidity and high stability. The advantage of the machine is never deformed. Compared with the bed of about 2 tons on the market, it has an indisputable absolute advantage. The weight of the machine tool ensures that the machine does not shake during high-speed processing, thereby ensuring the machining accuracy.

2. Adopting high-quality and high-power stepping motor to enhance the click torque, the processing speed is faster than other brand-name motors, the stability is stronger, the accuracy is higher, and the failure rate is lower.

3. High configuration + strict technical assembly process creates a high-precision and high-efficiency machine. The machining accuracy of the whole machine is up to 5 wires, that is, ±0.05mm, and the machine body is not deformed when fully welded to 1200kg, so as to ensure the accuracy of the whole machine.

4. Adopt the original imported Taiwan HIWIN linear square guide rail, with flange, strong sealing, dust-proof and chip-proof, 3000 kilometers maintenance-free, high precision, wear resistance, ensure transmission accuracy, the size of guide rail and screw rod are 30mm /32mm, strong bearing capacity.
Technical Parameters

Dimension	3100*2280*1850 mm
Platform size	1300*2500 mm
Working area	1220*2440*200 mm
Travelling speed	20m/min ( MAX )
Working speed	12m/min ( MAX )
Working voltage	AC220V(Optional 380V)
Spindle power	Water cooled 3.2KW-24000RPM
Device architecture	One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small deformation.
Driving system	XYZ: 86 high torque stepper drive motor and drive
Rack and pinion	The new 1.2m alloy hardened helical gear rack + alloy hardened helical gear rack
Guide Rails	Taiwan Original 20 guide rails +Taiwan TBI 2510 ball screw
Operating system	Nc studio / Mach 3 / DSP
Platform structure	Aluminum profile + fixture
Electrical accessories	Omron, Chint
Inverter	4.5kw BEST / Fuling
Power cable	Shanghai customized high-soft high-speed shielding cable, anti-interference and anti-breakage
Lubrication system	Oil pump centralized lubrication control
Security system	Overtravel protection, electrical protection etc.
Dust collector	2.2KW vacuum cleaner, Vacuum pipe, Vacuum hood.
Fastenings	The transmission parts are fixed with high strength 12.9 class screws, and the sheet metal is fixed with 304 stainless steel screws
Accuracy	Each axis is fixed rigidly, and the locating pin is added to the precision part.
Quality Control	Incoming material, process, delivery full control, 24 hours machine test.

Show details
Spindle
HQD 3.5kw air cooled spindle, 24000RPM
Body structure
Heavy duty steel welded body structure
Control cabinet
Independent control cabinet with BEST Inverter, Leadshine 860H stepper drivers.
Oil system
Automatic oli lubrication system
Rotary device
4th rotary device part optional
Applications
1.Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2.Wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3.Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds. 4.Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, alum- inum plate engraving and milling process.
Pacakge & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Company
Samet Intelligent Manufacturing Co., Ltd. is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture, solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing, automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
Certificate & Customers
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world. We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive. At present, the company's products are sold to major and small cities and regions in China. The company has independent import and export right, products are exported to southeast Asia, the Middle East, Africa, Europe and the United States and other places, and with its excellent quality, excellent performance and perfect after -sales serves won the customer the consistent approval.
Our Service
1. 24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.2. We will provide free training, free maintenance, free technical upgrading.3. We accept the ODM, OEM.
4.Oversea agents wanted, if any interest, pls let me know.
If you have any questions, please contact us freely !

---
