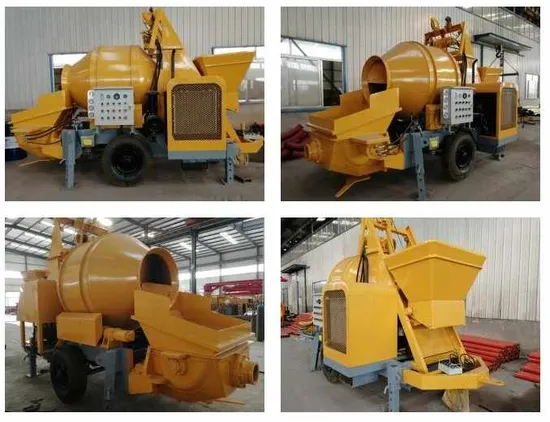

China Factory Original 40m3 Per Hour Beton Pump with Mixer with Hydraulic Outrigger

Product Description

Concrete Pump with Concrete Mixer In One Machine for sale is the newest products patented by our company, it is combined by thetraditional concrete pump and the mixer together, it is the most suitable for usein four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.
Concrete mixer with pump into one body, simple to operate, easy to move, flexible, and stable performance. The pump construction operation system used in all automated, all material mixing, high pressure pumping as one; Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions.
Technical Parameters :
Diesel Model: DJBT40-11-56 Concrete Mixer with Pump:

Item		Unit	Parameter
Concrete pump and mixer	Max. theoretic concrete delivery volume	m³/h	40
	Max. theoretic delivery pressure	MPa	11
	Max. delivery frequency	times/min	26
	Type of distribution valve		S tube valve
	Main oil cylinder specification: cylinder dia./role dia.× stroke	Mm	Φ100×700
	Diameter of delivery cylinder	Mm	Φ180×700
	Hopper capacity	L	600
	Discharging height	Mm	1070
	Output opening diameter	Mm	150
	Pipeline inside diameter	Mm	125
	Mixing drum	L	450L
Power system	Rated power of pumping diesel engine	KW	56 (LOVOL 1004-4)
	Revolution	r/min	2200
Hydralic system	Type of Hydraulic oil circuit		Open circuit
	Maximum oil pressure of main system	MPa	28
	Max. mixing speed	r/min	42
	Hydraulic oil tank volume	L	420
Other parameters	High and low pressure switch		Equipped
	Procedure-control electric lubricating system		Equipped
	Concrete slump range	mm	80~200
	Allowed pumping maximum aggregate size (standard concrete)		Pebble 50mm rubble 40mm
	Dimensions (L × W × H)	mm	4960×2050×2800mm
	Max. delivery distance I	horizontal	560m
		vertical	160m
	Weight	Kg	5000
	Towing speed	Km/h	≤8

Electric Model: DJBT40-11-56 Concrete Mixer with Pump:

Item		Unit	JBT40
Pumping system	Theoretic output	m³/h	40
	Theoretic outlet pressure	Mpa	11
	Theoretic delivery height	m	150
	Theoretic delivery distance	m	450
	Pumping frequency	/min times/min	20
	Distribution valve		S S pipe valve
	Concrete cylinder spec. (inner dia. x stroke)	mm	Φ180×1000
	Oil cylinder spec. (outer dia. x inner dia. x stroke)	mm	Φ100×1000
	Outlet diameter	mm	Φ150
	Delivery pipe inner diameter	mm	Φ125
	Hopper volume	L	600
	Rated voltage	V	~380
	Main motor power	Kw	45
	Hydraulic circuit type		open
	Main system max. oil pressure	MPa	32
	Distributing system pressure	MPa	20
	Mixing system oil pressure	MPa	12
	Max. Mixing speed	r/min	30
	Oil tank volume	L	200
	Max. aggregate diameter	mm	Pebble40 mm Rubble 30mm
	Concrete slump scope	mm	15-20
	(××) Outer dimension (L*W*H)	mm	5112×2091×2800
	Weight	Kg	4800
Mixing system	Mixing volume per time	m³/ m³/time	0.45
	Mixing volume per hour	m³/h	20
	Mixing motor power	Kw	4×2=8
	Lifting motor power	Kw	4.5
	Water pump power	Kw	0.55
	Vibrating motor power	Kw	0.5

Saintyol DAWIN Concrete pump with Mixer Features: The perfect combination of mixing and pumping, it's a one new equipment gathering function of lifting gravel material, mixing, and pumping, the whole process completed by an operator, significant saves in labor costs, at least saves 3-4 name labors for the construction, and efficiency can be increased 4-6 times;
Conveniently and flexibly moving, very suitable for removing between the multi-site work.
High output pressure, can meet high-rise buildings and the constructions of long-distance transport requirements.
Apply for advanced S valve to change direction, better meet to transfer the fine aggregate concrete.
Have Suction pumping function to minimize pipe blockage.
Electrical part adopts PLC control, with the best handling characteristics.
Glasses plate and cutting ring with high hardness wear-resistant alloy material and longer life.
With automatic centralized lubrication system, greatly extending the life of rotating parts.
Hydraulic cooling using advanced air-cooling system, no need water, easy to use.
Friction between the rollers by a gear wheel, reliable non-skid.
Electric cabinet equipped with a wireless remote control handle, easy to operate.
Saintyol DAWIN Machinery Concrete Pump With Mixer Main Parts:

Package & Shipping :
FAQ:
Q: How many kinds of trailer concrete pumps you have?
A: We have all kinds of concrete pumps such as small models with capacity 20, 25, 30, 40m3/h, medium models with capacity 40, 50m3/h, large models with capacity 60, 80m3/h.
Q: Do you have concrete placing booms that could be working together with concrete pump?
A: Yes, We have below series.
1: 13/15/17m Manual Mechanical Spider Concrete Placing Booms
2: 13/15/17Mobile Hydraulic Spider Concrete Placing Booms
3: 29/33m Floor Climbing Type and Elevator Well Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q: What is the configuration?
A: For exporting, most of the components are world famous top brands such as LOVOL, DEUTZ, Siemens, Rexroth, Kawasaki, Omron, LG, Eaton, Manuli, Parker etc. The configuration could be customized according to client's requirements.
Q: Is engineer available for training and after sales service?
A: Yes, our oversea engineers team are standing by for oversea service. Some engineers could speak English.
Job Site Performance:
Friends Visits:
Dear Friends:
Welcome to our website and hope our trailer mobile concrete mixer with pump concrete will make you satisfied.We think creatively,design bravely,manufacture precisely and loyalty to our customers. And we have our own factory.so We can produce the products,according to customer requirements .

Construction For Prosperous!
Yours sincerely
Saintyol Dawin Machinery

---
