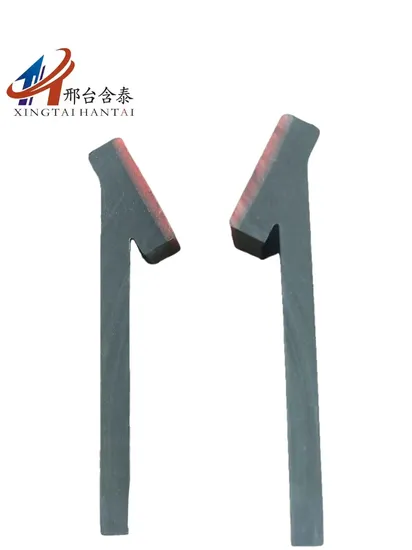

Belt Skirt Board Polyurethane Skirting Conveyor Belt Skirt Rubber

Product Description

Product Parameters

Model NO.	CUSTOMIZED	Thickness	10 ~ 25 mm
Features	High Wear Resistant & Good Sealing	Width	150 ~300 mm
After Warranty Service	Video Technical Support/Online Support	Working Temperature	-30c ~ + 70c
Local Service Location	Russia, Canada, the United States, Mexico and Argentina	Hardness	65+/-5 Shore a
Specification	Customized	Transport Package	Plywood Case, Wooden Case, Pallet
Trademark	XTHT	Production Capacity	8000 Metre/Month
Origin	China

Product Size

Order No.	Height.mm	Thickness.mm	Length.mm
HT-150	150	10/15/20	30 m or customized
HT-170	170	10/15/20	30 m or customized
HT-190	190	10/15/20	30 m or customized
HT-200	200	10/15/20	30 m or customized
HT-220	220	10/15/20	30 m or customized
HT-250	250	10/15/20	30 m or customized
HT-280	280	10/15/20	30 m or customized
HT-300	300	10/15/20	30 m or customized

Product Description
The rubber skirt board is a kind of automatic conditioning conveyor belt skirt system with anti-overflow and anti-falling. The system is composed of main seal and auxiliary seal. It is soft and wear-resistant, and tightly fits with the belt through the elasticity of the cover itself. Multi-layer protection of main and auxiliary seals collects dust to prevent overflow.
The rubber skirt board is made of high wear-resistant pure rubber, with better wear-resistance, longer service life and no damage to the belt.
Scope of application:
The rubber skirt board is used for anti-spill and anti-spray protection of various materials such as powder, block and granule.
Product use
The rubber skirt board is used to solve the phenomena of coal spraying, air leakage and powder running on both sides of the guide chute and the belt quality inspection, and plays an important role in reducing the dust concentration in the belt corridor.
Product features
The double sealing anti overflow skirt is made of polyurethane and natural rubber. The skirt part that plays the main sealing role in contact with the belt is high wear-resistant polyurethane, which has high elasticity and high wear resistance.
Specification and model of anti overflow skirt
1, Thickness of rubber skirt board: 10-15-20mm.
2, Width of rubber skirt board: 100mm-350mm.
3, Length of rubber skirt board: equal to the length of guide chute according to site requirements.
4, According to customer needs, we can produce any special-shaped specifications.
Product Advantages
1.Polyurethane wear-resistant layer is adhered on the parts which may touch the belt to lengthen the service life and avoid belt damage.
2.Dual layer structure, the inside layer is used to avoid material spillage, and the outside layer is used to prevent dust flying around.
3. The clamp units make installation more convenient and faster.
4. 35-degree chamfer eliminate typical skirting break-in period.
Skirt rubber has a double layer of skirt rubber compound from polyurethane and rubber.
The inner wear resistant of polyurethane exceeds the wear life of traditional rubber on skirting,
whilst outer anti-dust integral molding can adapt to belt vibration and maintain the correct pressure to effectively seal the belt. Detailed Photos
Packaging & Shipping
Our Advantages
FAQ
Q: Are you a trading company or manufacturer ?
A: We are a manufacturer with specialized production equipments and testing machines.
Q: Can I get a sample for testing ? How do it charged ?
A: Yes, the sample is free of charge, but we don't bear the Express costs.
Q: What is the advantage of XTHT compared to other companies in the industry?
A:Our company has advanced automated production lines, uniform and stable quality, to achieve sustainable and efficient professional production. We also have rich experience in R&D and production team, can provide customers with the highest quality products and quality services.
Q: What is the price policy of your company?
A: In our company, the price is different according to the quantity of your order, the more the cheaper. For more detailed information, please contact our customer service representatives. The professional team will offer you 24/7 service.
Q:What are the features of the services your company offered?
A: Based on the wide range of our products, We can offer first-class one-stop sourcing service. It will improve your efficiency significantly and be more economical.
Q: Can you manufacture the different Conveyor equipment products according to the customer's drawings or samples?
A: Yes, we can develop the new products as the customer's request,such as Impact bed,belt cleaner,rubber and polyurethane products,etc.
Q: Do you have foreign experience for your products?
A: Yes, we have exported our products to USA , Australia, German, Korea ,UK, The Philippines, Indonesia,etc.

---
