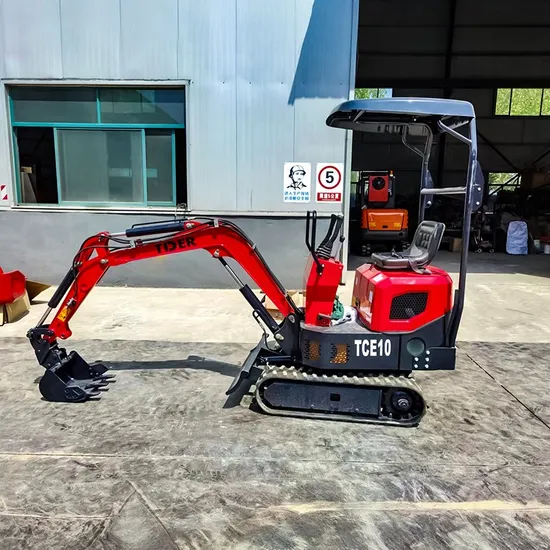

CE/ISO Crawler Tder China Mini Excavator Tce10, Tce18, Tce20, Tce25

Product Description

TDER garden or farm using mini Excavator 1 Ton Smallest Mini Excavator
Product specification--------1 Ton mini excavator

Model	TCE10
Engine
Engine Model	KOOP KD192F-1 7kW/3000rpm EURO V Emission
Type	Direct injection, wind cooled, natural intake
No. of cylinder	1
Main Performance
Swing Speed	r/min	0-13
Traveling Speed	km/H	2
Grade ability	%	30°
Traveling Tracking Force	kN	8.3
Bucket Digging Force	kN	7.2
Arm Digging Force	kN	4.6
Hydraulic System
Hydraulic system working pressure	Mpa	16
Hydraulic Pump		Gear Pump
Hydraulic pump flow	L/min	18
Fuel Tank Capacity	L	26
Hydraulic Tank Capacity	L	14.5 in Hydraulic tank 21.5 in Hydraulic system
Overall Dimensions
Overall Length	mm	2840
Overall Width	mm	880
Overall Height	mm	2200
Counterweight Ground clearance	mm	385
Axle Base	mm	900
Track width	mm	180
Undercarriage width	mm	840
Undercarriage ground clearance	mm	132
Operation parameters
Operation Weight	KG	950
Bucket Capacity	m3	0.023
Max. Digging Radius	mm	3065
Max. Digging Depth	mm	1715
Max. Digging Height	mm	2600
Max. Dumping Height	mm	1830
Tail Swing Radius	mm	800

FAQ 1. Why choose us? As a manufacturer, Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services. 2. What is the product range of our factory ? Tider industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements. 3. What payment terms can we accept? Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted. 4. What Certificates do we have? All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed. 5. How about our delivery time? Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order. 6. Can we provide OEM service? Tider industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.

---
