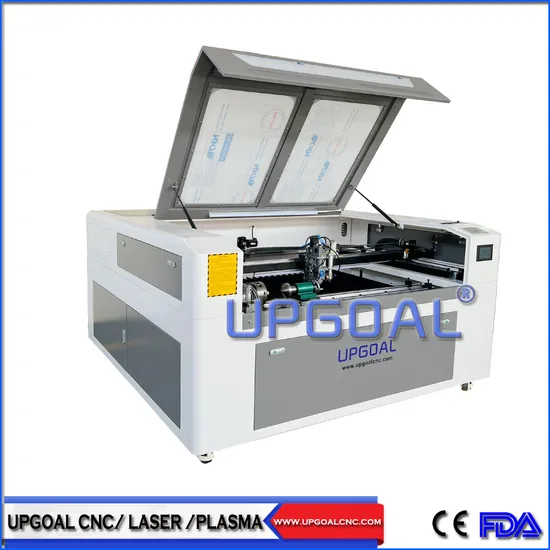

Upgoal 1390 Model Mixed 500W 90W CO2 Laser Cutter Cutting Machine for Nonmetal & Metal

Product Description

UPGOAL 1390 Model Mixed 500W 90W CO2 Laser Cutter Cutting Machine for Nonmetal & Metal
Features
1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.
2. Equipped with dual metal&non-metal laser cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.

A1 head With famous SLW 500W folding Co2 laser tube, can for 3-3.5mm thickness stainless steel/carbon steel cutting, also can for 40mm wood cutting. A2 with Reci 90W Co2 laser tube, used for non-metal materials engraving & thin cutting.
3. With advanced embedded RuiDa 6332M DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect.

4. Specialized metal cutting using non-contact RuiDa live focusing system, ensuring same cutting quality for whole working table, no need further processing for the fracture section, high efficiency, long life time and more stable.

5. With auto height controller for laser head, can track the metal material surface and adjust suitable focus length, ensuring the cutting quality.

6. Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.
7. Adopting imported focus lens with high luminousness and mirror with high reflection ensure stable power transference and laser beam consistency.
8. Adopt 3phases Leadshine stepper driver with high dynamic response performance and loading capacity.
9. Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rails and blocks with 3M belt transmission ensured stable transmission, lower noise.

10. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.

11. Teyu Industrial water chiller CW-6000 with 28meter lift is equipped to ensure the machine can work last long time.
11. With chuk type rotary axis ( diameter 125mm, length 1000mm) for metal tube cutting & non-metal cylinder engraving.
Technical Parameters

Working area	1300*900mm
Laser Type	A1: Folding co2 tube A2: Glass co2 laser tube
Laser tube power	A1: 500W(maximum 530W),SLW, China A2; 90W( maximum 100W), Reci China
Working table	High strength knife strip and honey comb double working table
Auto lifting table	Up and down 300mm
Oxygen control system	Yes
Laser head	Automatic torch height controller laser head structure for metal materials
Driver mode	3 phase stepper motor and driver(Leadshine brand )
Guide rail	Linear square guide rail ( CSK,Taiwan)
Transmission	Belt(3M)
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa control system 6332M (Live focus system)
Control software	MetalCut & Rdworks V8
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller, CW-6000 (Teyu, S&A, With 28meter lift)
Water protection system	Yes
Blow-off system	Air pump and air blower
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Voltage	AC 220V/110V, 50/60Hz, single phase
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Certificate	CE/FDA

Applications
Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.
Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.
Reference Sample Photos
Reference Working Videos

https://youtu.be/2BN2JBmaI9s
https://youtu.be/Bj3u2t2JthI
https://youtu.be/FVnnKy0gXWQ

For more information, just feel free to contact us!
