Application:

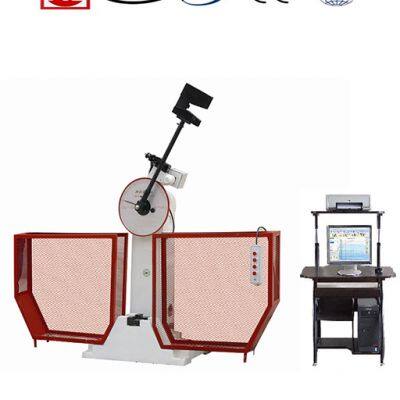

Model JBW-N Computer Screen Display charpy and izod Impact tester is high performance pendulum impact tester that precisely determines absorbed impact energy and resistance to breakage of metallic specimens. With the computer display, it can show test result and test curve in real time easily. Designed for determination of the impact energy as Charpy and Izod impact methods according to ASTM E23, ISO, DIN, EN standards; Innovative mechanical design features make these testing machine top contenders on the market with excellent price/quality ratio as well as high accuracy. Universities, automotive and aero companies, research and R&D Labs, as well as steel plants are typical customers for these testing systems.
Specifications:
Specifications
| JBW-300N
| JBW-500N
|
Charpy Impact energy (J)
| 150, 300
| 250, 500
|
Izod Impact energy (J)
| 150
| 250
|
Charpy Impact velocity (m/s)
| 5.2
| 5.4
|
Izod Impact velocity (m/s)
| 4.8
| 4.8
|
Raised angle
| 150ยบ
|
Standard span (mm)
| 40
|
Round angle of jaws (mm)
| R1-1.5
|
Round angle of striking edge (mm)
| R2-2.5
|
Size of specimen (mm)
| 10 x 10 x 55
|
Power supply
| 3phs, 380V, 50Hz or 220V, 60Hz
|
Dimensions (mm)
| 2124 x 600 x 1340
| 2144 x 736 x 1390
|
Net Weight (kg)
| 880
| 980
|
Display
| Computer screen
|
>>
