Z3050X11B Radial Drilling Machine Lower Price

Product Description

High quality Z3050X11B Radial Drilling Machine
Product Description
Product Parameters
Product main technical parameters:

Specification	Z3050X11B
Max.drilling dia(mm)	50
Distance from spindle nose to table surface(mm)	260-1150
Distance between spindle axis and column surface(mm)	360-1050
Spindle travel (mm)	270
Spindle Cone	5
Spinde speeds range(r.p.m)	35,60,105,170,290,395,540,710,1310
Spinde speed step	9
Spinde feeding range(r.p.m)	0.10,0.16,0.22,0.25,0.35,0.56
Spinde feeding step	6
Rocker rotary angle	±90°
Main motor power(KW)	4
Maximum resistance to the spindle (N)	16000
Movements motor power(KW)	1.5
N.W/G.W(Kg)	1700
Overall dimensions(mm)	1550×705×2250

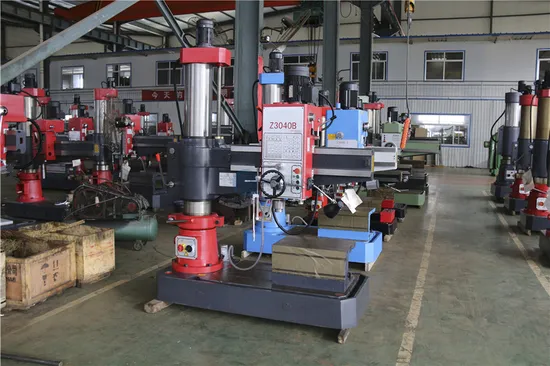

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
