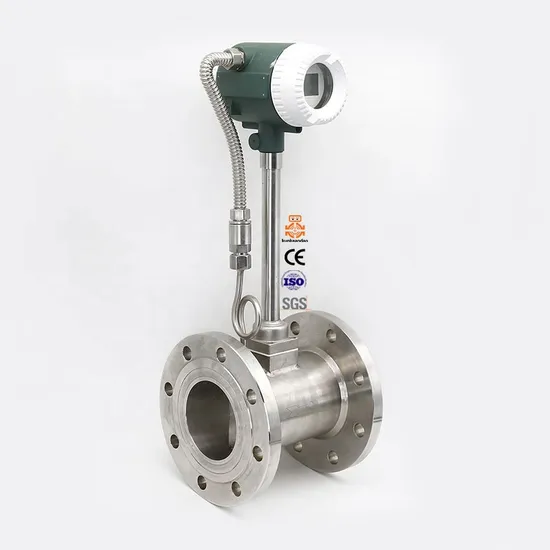

CE Boiler CO2 Steam Flowmeter Pressure Transmitter Air Gas Vortex Flow Meter

Product Description

CE Boiler CO2 Steam Flowmeter Pressure Transmitter Air Gas Vortex Flow Meter Features
1. calibration, high repeatability and high measurement accuracy;
2. Freely select temperature compensation and pressure temperature for more on-site use;
3. The circuit board is aging before leaving the factory, and the whole table is calibrated one by one, which is more suitable for field use;
4. Wide range of applications, gas, liquid and steam can be metered;
5. Low pressure loss, low energy loss, and energy saving;
6. Simple and firm structure, no moving parts, high reliability, low maintenanc.
Product description LUGB vortex flow meter can achieve the following functions according to the selection:measuring the Pressure
temperature, instantaneous flow and cumulative flow of medium fluid in industrial pipelines, and has pulse output,
4-20mA analog signal output, RS485 communication (Modbus RTU protocol), GPRS of Internet and other functions.
Technical Parameters

Diameter(mm)	15,20,25,32,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in)
Nominal pressure(MPa)	DN15-DN200 4.0(>4.0,Supply agreement)DN250-DN300 1.6(>1.6,Supply agreement)
Medium temperature(ºC)	Piezoelectric type :-40~150ºC,-40~250ºC,-40~330ºC; Projected Capacitive:-40~400ºC(Supply agreement)
Body material	1Cr18Ni9Ti(Other material order by agreement)
Permissible vibration acceleration	Piezoelectric type :0.2g Projected Capacitive:1.0-2.0g
Accuracy	±1%R,±1.5%R;plug-in:±2.5%R
Range of degrees	1:6~1:25
Power Supply	Sensor:DC+12V,DC+24V;Transmitter:DC+12V,DV+24V;Battery-powered:3.6V
Output signal	Pulse:high level:≥5V low level:≤1V;electricity current:4~20mA
Pressure loss coefficient	Comply with JB/T9249 standard Cd≤2.4
Explosion-proof coefficient	Intrinsic safety :Ex ia II CT2-T4 Explosion-proof type:Exd II CT2-T5
Level of protection	Ordinary type:IP65 Diving type:IP68
Environmental conditions	Tempersature:-20ºC~55ºC,relative humidity 5%~90%,atmospheric pressure:86~106kPa
Applicable medium	gas ,liquid,steam
Transmission distance	Three-wire pulse output:≤300m,Two-wire standard current output:(4~20mA)≤1500m load resistance≤500Ω;RS485/HART≤1200m.

Connection method classification
Field application
Company information WEIHAI KUNKE FLOW INSTRUMENT CO.,LTD. is a high-tech enterprise specializing in meter research and development, production, sales and service.
The company was founded in 2010. In 2012, it won the excellent incubation enterprise of Weihai City. It is a high-tech enterprise supported by the Weihai Municipal Government. In 2017, the company was listed as a securities company.
The company has successively obtained ISO9001-2015 international quality system certification, ISO14001-2015 environmental management system certification, OHSAS18001-2007 occupational health and safety management system certification and ISO10012-2003 measurement management system certification, CE certificate,
Exhibition informationPayment&Delivery
FAQ
Q:What kind of products do you offer ?
A:We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.
Q:Can vortex flowmeter be made explosion-proof?
A:Yes,vortex flowmeter can be made into explosion-proof.
Q:How about the quality of the magnets?
A:We have the certification of ISO, Europe standard ATEX,we could send the certification test of our company to you.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.

---
