Made in China High Quality & Made to Order Zinc-Plated S Type Steel Agricultural Chain (S32K1, S55K1, S62A2K1, S77K1)

Product Description

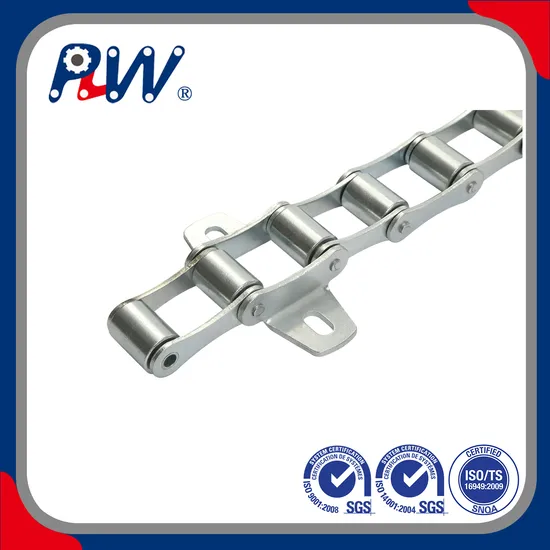

High Quality & Fast Delivery & Made to Order Zinc-Plated S Type Steel Agricultural Chain with Attachment
Product Description
1. Material: Alloy steel & Stainless steel
2. Surface treatment: Shot peening / Zinc-plated / Nickel-plated / Dacromet-plated
3. Characteristic: Chain plate hole finally passed ball extrusion to ensure maximum fatigue resistance, parts of shot peening treatment makes the chain and the sleeve has a higher fatigue strength.
4. Application scenarios Agricultural irrigation system: Galvanized chains are commonly used in micro sprinkler irrigation systems and drip irrigation systems as pipelines for transporting water and fertilizers, ensuring the long-term stable operation of the system.
Greenhouse construction: used to build the skeleton and supporting structure of the greenhouse, providing stable support and climate protection, and extending the service life of the greenhouse.
Agricultural machinery and equipment: transmission systems used for tractors, harvesters, and other agricultural machinery, capable of withstanding large loads and impact forces.
Ranch management: used for fencing and livestock management equipment to prevent animal escape and external harm.

Product name	Zinc-Plated S Type Steel Agricultural Chain With Attachment
Materials Available	1. Stainless Steel: SS304, SS316, etc
	2. Alloy Steel: 45Mn, 42CrMo, etc
	3. OEM according to your request
Surface Treatment	Shot peening, Polishing, Oxygenation, Blackening, Zinc-plated, Nickel-plated, Anodized, etc.
Characteristic	Fire Resistant, Oil Resistant, Heat Resistant
Application	Agricultural machine
Design criterion	ISO DIN ANSI & Customer's Drawing
Size	Customer's Drawing & ISO standard
Package	Wooden Case / Container and pallet, or made-to-order
Certificate	ISO9001: 2008
Advantage	First quality, best service, competitive price, fast delivery
Delivery Time	20 days for samples. 45 days for official order.

Detailed Photos
View more products,please click here...

CHAIN NO.	P	b1	G	F	W	h4	d4	K	h2
Cadena No	mm	mm	mm	mm	mm	mm	mm	mm	mm
S32K1	29.21	15.88	15.0	42.9	61.0	8.6	5.3	6.9	13.2
S32K1F1	29.21	15.88	15.0	42.9	61.0	8.6	6.5	8.1	13.2
S42K1	34.93	19.05	17.5	54.0	74.9	14.0	8.3	11.5	19.8
S45K1	41.40	22.23	22.0	54.0	75.0	11.4	8.5	11.7	17.3
S51K1	38.10	16.00	19.0	49.8	71.5	11.4	8.3	9.9	17.3
S52K1	38.10	22.23	19.0	58.8	78.0	11.4	8.3	9.9	17.3
S52K1F1	38.10	22.23	19.0	58.8	78.0	11.4	6.6	8.2	17.3
S55K1	41.40	22.23	22.0	54.0	75.0	11.4	8.5	11.7	17.3
S55K1F1	41.40	22.23	22.0	54.0	75.0	11.4	6.5	9.5	17.3
S55HK1	41.40	22.23	34.0	52.7	82.0	13.4	8.4	11.4	20.4
S62K1	41.91	26.20	22.0	66.8	95.4	11.4	8.3	14.7	17.3
S62A2K1	41.91	26.20	22.0	66.7	95.5	12.6	8.3	14.7	17.3
S62F2K1	41.91	26.20	22.0	66.8	95.4	11.4	6.5	13.0	17.3
S62F5A2K1	41.91	26.20	22.0	66.7	95.5	12.6	8.3	14.7	16.7
S77K1	58.34	22.23	25.0	76.2	102.0	20.8	8.3	11.5	26.2
S88K1	66.27	28.58	22.0	97.0	119.4	20.8	8.3	9.9	26.2
S51HF1K1	38.10	16.00	34.0	52.4	84.5	13.0	8.3	9.9	21.0
S88F2K1	66.27	28.58	22.0	97.0	119.4	20.8	8.3	9.9	26.2
S42A1F2	34.93	19.05	23.6	54.0	75.0	14.0	6.9	10.1	19.8
S42F2A1	34.93	19.05	17.5	54.0	75.0	14.0	8.3	11.5	19.8
S88F3K1	66.27	28.58	30.0	97.7	120.0	20.5	8.3	9.9	26.2
