PU Sealant Vacuum Power Mixer

Product Description

Silicone sealant dispersing power mixer
Summary

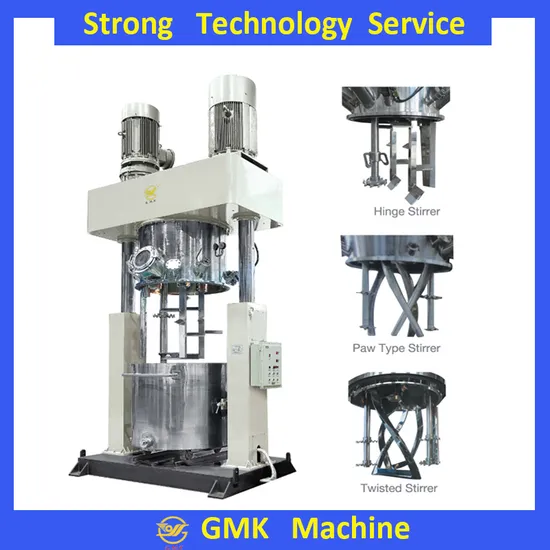

DLH series power mixer is a kind of new no-dead-point power mixing and dispersion equipment. It combines functions of planet mixer and power dispersion, adopts unique stirring mechanism, with charging barrel fixed and unmoved, with dispersion plate and stirring paddle realizing planet movement of revolution and rotating, with frequency conversion speed regulation. It makes the materials to move complicatedly, with strong shearing and kneading, for full dispersion and mixing of materials without mixing dead point. An automatic wall scraper mechanism is designed in the kettle, which continuously scrapes the materials adhering to the wall. The equipment is uniquely sealed, can be pressurized or vacuumed. It is extensively used in solid-solid, solid-fluid and fluid-fluid mixing, reaction, dispersion, dissolving, homogenizing and emulsification, etc., in chemical, light industry, medicine, food, building materials, farm chemical industries, etc. It is ideal equipment for production of ink, pigment, adhesive sealant, paste, paste-type material, lubricant, paint, paste cosmetics,
emulsion, cream food and additive, etc.


Specifications

1	Vacuum Degree	-0.098MPa
2	Structure	Gantry Type(DLHL)
3	Rotation Speed r/min	Revolution:0~42r/min,Rotation:0~66r/min( Frequency-converting); High speed:0~980r/min( Frequency-converting).
4	Slow Shaft	Two set ribbons, two set bottom scraper and one set wall scraper.
5	Fast shaft	Single fast shaft with two Φ250 dispersion disk structure, no hole in the middle of dispersion disk ( or with two above butterfly stirrers )
6	Lifting mode of vessel cover	Hydraulic
7	Lifting height of vessel cover	1200mm
8	Mode of Temperature Measurement	Temperature detector fixed on scraper, rotation electric conduction device inside, temperature detector contacting material, it is exact for measurement, the patent no. of this device is Z200520112283.5.
9	Location of vessel	Adopt guiding device for pushing and location way of arc plate, lugs structure on the vessel, ensure the middle location.
10	Lock of vessel	Mechanical manual lock
11	Total Power(KW)	164kw
12	Power Supply	AC:3*380V,50HZ
13	Dimension	L2720 W1750 H4480(the higest)
14	Weight(kg)	Abt 8500kgs

Company Information


Established in 2002, Foshan Golden Milky Way Intelligent Equipment Co.,LTD(GMK)covers an area of 19,253squaremeters. Company existing staff 310 people,of which 101
people are technical personnel with high education background (accounting for 32.58% of total staff), 38 people are whole-time researcher ( accounting for 12.26%of total staff).

GMK company mainly manufacture hightech intelligent complete sets of equipment, including Silicone Sealant Continuous Automatic Production Line, HTV Continuous Automatic Production Line, Planetary dispersing power mixer, Static mixer, Automatic cartridge filling machine, Lithium battery pole sheet coating machine, Lithium battery pole sheet rolling machine and so on. GMK company has a good reputation in Fluorosilicone industry, Construction Sealant industry, Solar Power and Wind Power specialized Sealant industry. Domestic market share in silicone sealant industry reaches 25%.

GMK company is an innovation based company. It possesses 10 authorized invention patents, 31 authorized utility patents, copyright of 7 computer software, 1 national key new product and 14 new and high-tech products of Guangdong province.



Packaging & Shipping
Delivery details: 2 months after your deposit.
Package details: Export standard package

Our Services
One years (12 months) quality guarantee service . from the date when machine was shipped. During the warranty period, our company will provide replaced parts free of charge because of quality issue.
Our technicians are available for oversea services. We have a professional aftersale service team, who are experienced in oversea technical service
FAQ
Why choosing us?
1. Professional team and company strength: More than 15 years in this area and owning a state brand "GMK".

2. One stop shopping service and competitive price: Including equipment design, manufacture, test
and shipment, save your time and purchasing cost.

3. Perfect after-sales service: One year warranty, offer technical support at any time.

4.Strong R&D capacity: Own more than 17 patents.

---
