Waste Plastic Recycling PE/PP/PS/EPS Shopping Bag Film Flake Single Stage Plastic Granulator Pelletizing Machine

Product Description

Product Description

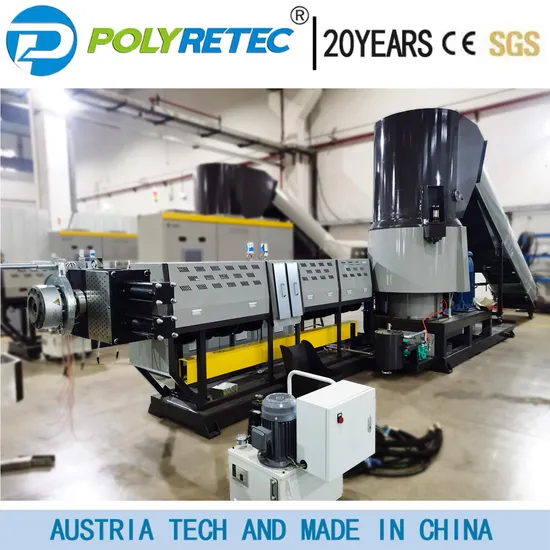

PE LDPE HDPE LLDPE Film Recycling Pelletizing Line
Name: PE LDPE HDPE LLDPE Film Recycling Pelletizing Line
Raw materials: pre washed sheet, PE / PP printing
01 - Raw materials
02 - Technical Parameters

Model	PTCS80	PTCS100	PTCS130	PTCS150	PTCS185
Screw diameter (mm)	80	100	130	150	185
L/D	18-42
Rotating speed (rpm)	10-150
Otput (KG/h)	150-250	200-350	450-600	600-700	800-1200

03 - Specification Introduction

Model	PTCS Three-in-one plastic recycling machine
Final product	Plastic pellets
Recycling machine structure	Conveyor belt, crusher, extruder, pelletizing unit, water cooling unit, drying unit and storage drum, degassing unit, filter unit
Recyclable materials	HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, EPS
Capacity	100-1200/hr
Feeding system	Belt conveyor, clamp wheel set (optional)
Screw diameter	65~180mm(customized)
Screw length to diameter ratio	30/1, 32/1, 34/1, 36/1 (customized)
Screw material	38CrMoAl Or bimetal
Degassing hole	Double degassing hole, single degassing hole or no degassing hole (customized)
Filtering system	Double-cylinder filtration
Pellet type	Hot die-cutting type (water-ring cutting)
Cooling method	Water cooling
Voltage	Customization (for example: 480V 60Hz in the United States, 440V/220V 60Hz in Mexico, 380V 60Hz in Saudi Arabia, 415V 50Hz in Nigeria)
Optional accessories	Metal detector (S+S Germany), wheel set, color master batch and additive meter, centrifugal dehydrator
Delivery date	It takes 50~70 days to customize the machine.
Warranty	One year
After-sales service	Engineers can be dispatched to customers' overseas factories to assist in machine installation

05 - Features


The plastic recycling pelletizing line PTCS manufactured is specially designed to recycle PE (HDPE, LDPE, LLDPE) and PP packaging materials. Except for the clean waste (waste from the production line), the printed surface, the washed waste and the crushed small fragments, all can be recycled by PTCS. Applicable waste materials include: plastic bag factory waste, food packaging waste, all kinds of plastic bags, shrink film, bale film, agricultural film, PE&PS foam material, disposable tableware, PP wire drawing, woven bag, space bag and The crushed hollow molding and injection products can be used for recycling and pelletizing. Scope of Application of Plastic Recycling Waste The recycled plastic pellets produced by PTCS can be immediately used in the production line for re-production. It is most often used to reproduce products on blown film machines and water pipe extruders. 1. Recycled clean plastic once-waste from plastic production plants Plastic production plants (blowing factories, bag making factories, and printing factories) generate an average of 5% of the total waste output. Recently, because the prices of petroleum and new materials keep rising, the problem of recycling of waste materials in plastic factories has gradually attracted attention. Using recycled plastic materials to make products again can greatly reduce the cost of purchasing new materials. Recycling the waste produced by the production line (for example: defective film rolls, cutting ears in the bag making process), the quality of the recycled materials can be up to 98% of the new materials. Many manufacturers currently choose to use primary recycled waste to produce products, and the quality of the products produced is quite close to the products made from new materials. This method can save the cost of using raw materials and increase the market value of the product. 2. Secondary recycling waste-washing waste, plastic particles with trace impurities In response to the needs of different customer groups, PTCS machines can also be used to recycle waste after washing (waste plastic film, agricultural film, cover film for construction projects...). The heat energy generated by the rotation in the PTCS crushing process can be used to heat the waste material after washing and take away the excess water in the material. In the part of the extruder, double degassing holes can release water and printing ink again. The plastic pellets produced by washing raw materials are mostly used to reproduce plastic films used to make garbage bags, engineering films, covering cloth, and to produce water pipes. The PTCS machine can be additionally equipped with a masterbatch/additive feeder to change the color of the recovered particles. Plastic particles with trace impurities

06 - High-efficiency Plastic Recycling Pelletizing Line

---
