24AWG 1000FT 305m Network Cable FTP Cat5e Pass Test Communication Cable

Product Description

24AWG 1000ft 305m Network cable FTP CAT5e pass fluke Communication cable
Product Description This CAT5e stranded cable is CM Rated and ideal for constructing custom patch cables. This cable's eight conductors are stranded copper with high-density polyethylene (HDPE) insulation and a PVC CM-rated jacket.
Product Features * UTP ,FTP , SFTP Twisted Pair Cable* Pass Test High Performance Computer Networking Cable * Suitable for Fast, Gigabit Ethernet * Digital Communication Applications of up to 550MHz Bandwidth for Cat6* Exceeds ANSI/TIA-568-C.2 , ISO/IEC 11801 Standards * Tangle Free Reelex and Easy Pull Box Packing* ETL Listed, CMX / CM / CMG / CMR / FT4 / CMP / FT6 Rated Are Available* PVC or LSZH Jacket For Indoor ,PE Jacket For Outdoor

Detailed Photos
Company Profile

Product Parameters
Electrical & Physical Characters:

rating			75ºC 30V
Conductor Resistance			Max 72.2ohm/km at 20ºC
Dielectric Strength			Min AC1.5KV
Spark Test			5.0KV
AC Leakage Current Through overall Jacket			AC 1500V <=10mA
Insulation	Unaged	Tensile Strength	16.5 Mpa
		Elongation	500%
	Aged	Tensile Strength	14.2 Mpa(100ºC 168h)
		Elongation	250%(100ºC 168h)
Jacket	Unaged	Tensile Strength	13.8 Mpa
		Elongation	150%
	Aged	Tensile Strength	11.7 Mpa(100ºC 168h)
		Elongation	80%(100ºC 168h)
Cold Bend Test			-20ºC 4hours No Cracking
DC Resistance Unbalance			Max 5%
Pair-to-Ground Capacitance Unbalance			Max 3300pF/km
Characteristic Impedance			1~500MHZ 100±15OHM
Propagation Delay			500MHZ Max 536ns/100m
Delay Skew			1~500MHZ Max 40ns/100m

* Values above 250MHz are information only Cable performance:

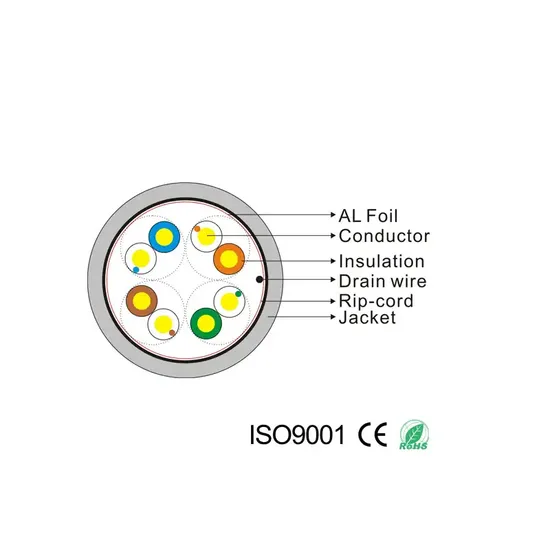

1	Pairs	4 Pairs
2	Conductor / Dia.	BC (Bare Copper);CCA ( Copper Clad Aluminum ); CCS ( Copper Clad Steel ) 0.40mm-0.57mm ( 23AWG-26AWG)
3	Insulation / Dia.	PE 1.0mm ±0.02mm
4	Rip Cord	Optional
5	Jacket / Dia.	6.2mm-6.5mm

Packaging & Shipping Packaging Details UTP cat.5e lan cable
305M/Roll;Packing in pull box;2 pull box/carton box
Note:wooden reel,plastic reel,paper reel are available
Note:100M/Roll,500M/Roll or other length are available
Port Shenzhen

Customer Feedbacks
FAQ
Q1.What is your delivery time?
A: Generally,it will take 3 to 15 days after receiving your deposit.The specific
delivery time depends on the items and quantity of your order.
Q2.Can you produce according to the samples or drawing?
A: Yes,we can produce by your samples or technical drawings.We also can
design and build the molds for you.
Q3.What is your sample policy?
A: We can supply free sample of common fiber optics, but customers have to
pay courier cost and in massive order, we return the sample cost.
Q4. Do you test all your goods before delivery?
A: Yes, all goods are 100% test before delivery.
Q5.How do you assure long term business and keep good relationship?
A:1.We keep persistent improvement to make nice quality and unique products
with competitive price to ensure our customers' benefit.
2.We keep mutual benefit for customers who have supported our company!

---
