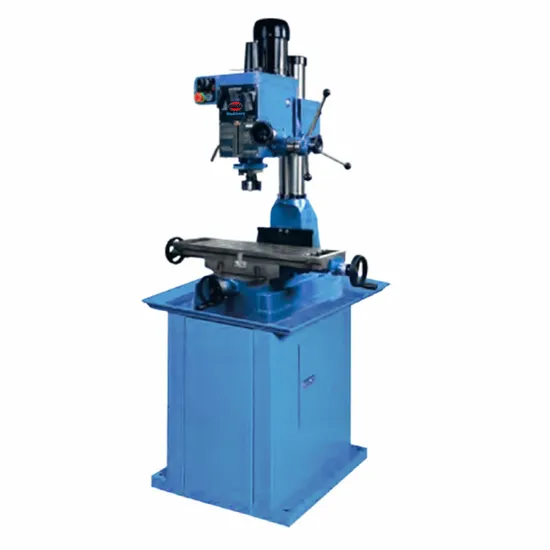

CE Approved New Sumore Mini Precision Milling Machine Mill and Drill

Product Description

Product Description
SUMORE 40mm vertical drill mill machine SP7040 fresadora universal drilling and milling machine SUMORE small milling drilling machine cheap mini torno fresadora Universal Vertical Drilling and milling machine for metal. Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine
Features/Advantages
Tapping Function
Brushless Motor & Variable Spindle Speed
Fine & Smooth Feeding Movement on Every Directions
High Precision for Model Engineering
Changable Table Length for Different Workpieces
Optional Table Auto Feed
Rigid cast iron construction with dovetailed slideways
Easy function change makes a versatile machine
Perfect for slotting, grooving, splines and gear cutting
Product Parameters

Model:	SP7016	SP7020	SP7025	SP7032	SP7040	SP7045
Max.drilling capacity:	16mm	20mm	25mm	32mm	40mm	45mm
Width of face milling:	50mm	50mm	63mm	80mm	80mm	80mm
Diameter of vertical milling:	12mm	12mm	13mm	22mm	28mm	28mm
Spindle travel:	115mm	115mm	90mm	130mm	120mm	120mm
Distance spindle axis to column surface:	240mm	240mm	202mm	202mm	260mm	260mm
Max. distance spindle nose to worktable:	440mm	440mm	380mm	450mm	450mm	475mm
Spindle taper:	MT.2	MT.2	MT.3	MT.3 or R8	MT.3 or R8	MT.4
Spindle speed range:	235~2050RPM	185~2400RPM	100~2150RPM	100~2150RPM	95~1600RPM	95~1600RPM
Spindle speeds:	5	12	12	12	6	6
Table Size:	585×195mm	585×195mm	585×195mm	730×210mm	730×210mm	820×240mm
Travel of worktable:	330×175mm	330×175mm	330×145mm	500×175mm	500×175mm	550×200mm
Overall height:	1040mm	1040mm	930mm	1100mm	1110mm	1040mm
Headstock travel:	350mm	350mm	300mm	315mm	350mm	410mm
Motor:	550W	750W	750W	1500W	750W	750W
G.W./N.W.:	200/160KG	200/160KG	260/220KG	330/285KG	340/275KG	340/270KG
Packing Size:	730×920×1050mm	730×920×1050mm	760×850×1050mm	845×745×1150mm	870×770×1130mm	870×770×1130mm
Quantity for 20GP	36PCS	36PCS	36PCS	36PCS	36PCS	36PCS

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
