Joborn 13/16 Combination Disk Famous Use in Tashkent Granite Market

Product Description

Product Description

Appellation	Unit	Type A	Type B
Max. Disc Diameter	mm	Φ2200/Φ2500/Φ2800
Max. Processing Length	mm	3800/3500/3200	4300/4000/3700
Max.Processing Width	mm	2200
Max. Lifting Stroke	mm	1350
Water Consumption	m³/h	15
Power Of Main Motor	kW	37/45/55
Total Motor	kW	48/56/66
Dimension(L*W*H)	mm	8000*4400*3700	8500*4400*3700
Weight	kg	14000	14500

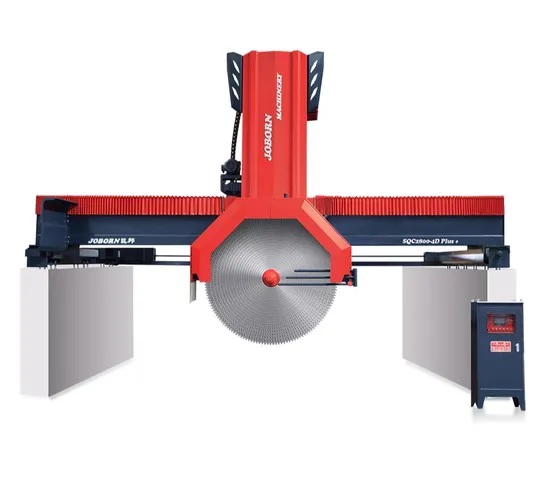

This machine adopts microcomputer control system and human-machine interface, uses inverter to control left-right feeding, adjusts the speed according to the stone material.
It uses hydraulic lifting system , combination of chrome-plated guide pin and wear guide bush, with small gap , wearable, beautiful structure , and guide sleeve with multi-layer seals , with waterproof , dust-proof , anti-spill , improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost;forward-backward automatic slicing uses high-precision screw nut driving, main spare parts adopt imported good-quality materials;
The block can be placed in the ground directly to save worktable and its maintenance costs; thus the whole machine is featured as high cutting efficiency, high slicing precision, and flatness of plate after cutting, high stability, easy-operating to suit specially cutting granite and marble block with high value and big size. Note: 360°rotating worktable can be selected if customer requires.

---
