ceramic tile impact resistance tester

Product Description

Product Description
Product Description

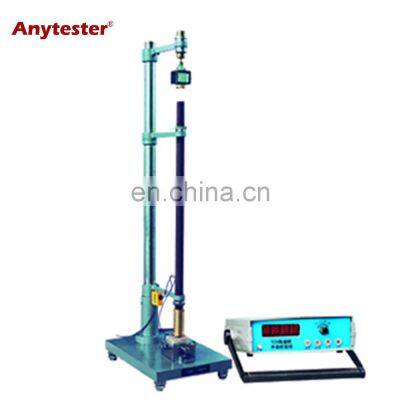

HY8070 Ceramic Tile Impact Resistance Tester is used to determine the impact resistance of all ceramic tiles by mesuring the coefficient of restitution. A steel ball droping from a fixed height onto the specimen, measuring the rebound height to calculate the coefficient of restitution.
Standard

ISO 10545-5

GB/T 3810.5

Specification

Model	HY8070
Steel ball diameter	19mm±0.05mm
Falling height	1000mm±1mm
Laser precision time measurement	Accurate to 1μs
Power supply	AC220V, 50Hz, 1.5kw
Working chamber size	500×400×1440mm

---
