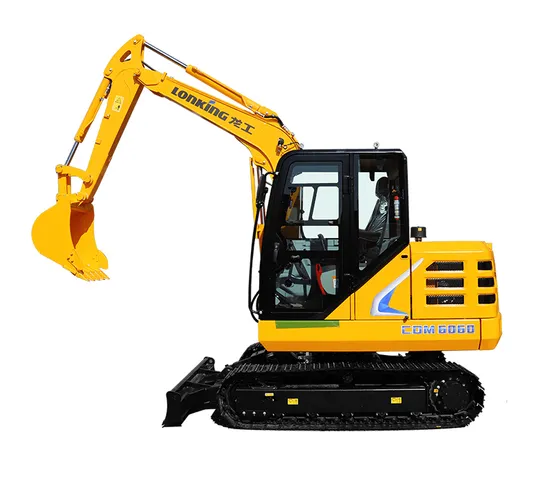

Cheap Mini Excavators Crawler Hydraulic Multifunctional Mini Excavators All Capacity 0.25m³

US$10,360.00-18,648.00 1 Set (MOQ)

Basic Info.

Model NO.
CDM6060
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Approximate Weight (Kg)
6080
Flow (L/Min)
151
Pressure to The Ground (Kpa)
32
Travel Speed(Low/High)(Km/H
2.5/5.0
Rotation Speed (Rpm)
11
Power(Kw/Rpm)
36.2/2100
Displacement(L)
3.054
Fuel Tank Capacity(L)
125
Work Pressure (MPa)
25.1
Origin
China
HS Code
8429521200
Production Capacity
20000

Product Description

Product Description
Self Weight kg 6080kg
Bucket Capacity m3 0.25
Capacity Range m3 0.12-0.4
Ground Pressure KN 32
Travel speed KM/H 5.0/2.5
Rotating Speed rpm 11
Gradeability ° 35
Model Yanmar 4TNV94L-BVLKC
Power KW 36.2KW/2100rpm
Fuel Capacity L 125
Displacement L 3.054
Working Pressure Mpa 25.1
Flow capacity L/min 151
Fuel Capacity L 80
The Max bucket Digging Force KN KN 40
The max arm Digging Force KN 28

Detailed Photos
