Cast Steel Wafer Type Single Plate Swing Check Valve-H74

Product Description

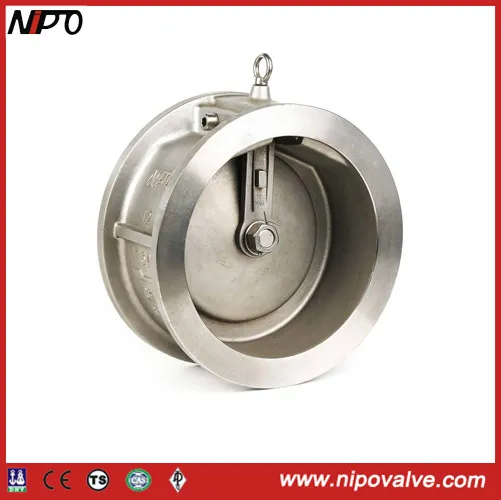

Casting Steel Wafer Type Single Plate Swing Check Valve
Product features
Wafer check valve is applicable for various pipelines with nominal pressure of PN1.0 Mpa~42.0Mpa,Class 150LB~2500LB and nominal diameter of DN15~1200mm,NPS 1/2-48 and working temperature of -196~540 degree Celsius to be used for protecting from medium backflowing.The different materials selection can apply to the medium involving water,steam,oils,nitric acid,acetid,strong oxidizing medium and urea etc.
To API594
Face to face per ANSI B 16.10
Flange ends dimension ANSI B 16.5/ANSI B 16.47
Final inspection tests to API598.
Design Features Single Plate ( Thin type/Sandwich type or Long pattern ) Body structure in forged steel body, cast steel body, ductile iron body Standard availabe in API 594, Testing Standard API 598/API 6D, Pressure & Temperature: ASME B16.34
Fitted available: Retainerless or with pin type Sealing: Soft/Resilient Seated, Metal to metal seat Wafer, Lug, Double Flanged: ASME B16.5, EN 1092
Materials
WCB CF8 CF3 GR4A Hastelloy C etc.
Corrosion protection
Inside and outside epoxy coating
Applicable temperature: -196-540 different raw material for different work temperature
Applicable medium: Water, oil, gas and other causticity medium (different raw material for different medium)
About this product:
H74H/H74W/H74X-10-40C/P/R Production:
WORKSHOP
INSPECTIONPACKING
We welcome all the world customers to contact us for more cooperation.
With our years of technical knowledge and experience,we assure you,
Naibang will be one of your best parters in China.

---
