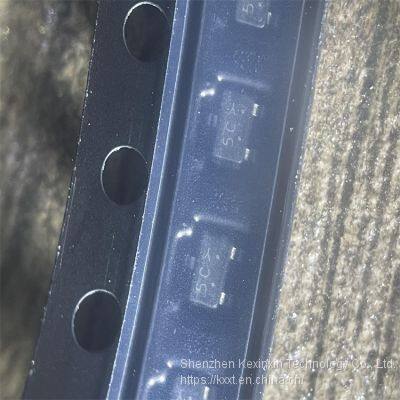

BAT54CWT1G onsemi Schottky Diodes & Rectifiers 200 mA, 30 V, Dual Schottky Diode, Common Cathode

Product Details

Product Description

Product Description
Factory
Mfr. #:
BAT54CWT1G
Manufacturer: onsemi
Product Category: Schottky Diodes & Rectifiers
RoHS: Details
Product: Schottky Diodes
Mounting Style: SMD/SMT
Package / Case: SOT-323-3
Configuration: Dual Anode Common Cathode
Technology: Si
If - Forward Current: 100 mA
Vrrm - Repetitive Reverse Voltage: 30 V
Vf - Forward Voltage: 520 mV
Ifsm - Forward Surge Current: 600 mA
Ir - Reverse Current: 2 uA
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Series: BAT54CW
Packaging: Reel
Packaging: Cut Tape
Packaging: kxxReel
Brand: onsemi
Height: 0.85 mm
Length: 2.1 mm
Pd - Power Dissipation: 200 mW
Product Type: Schottky Diodes & Rectifiers
Factory Pack Quantity: 3000
Subcategory: Diodes & Rectifiers
Termination Style: SMD/SMT
Type: Schottky Diode
Vr - Reverse Voltage: 30 V
Width: 1.24 mm
Unit Weight: 0.001058 oz

---
