Cycjet Lf30f 30W Laser Marking Machine for Online PVC Pipe

Product Description

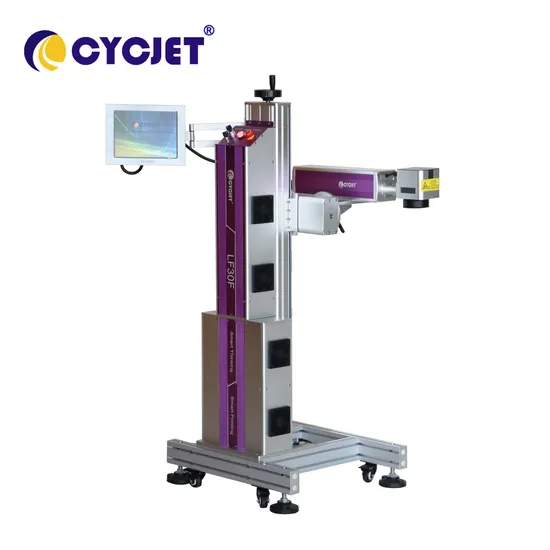

Product Picture:
Components of Machine:
Characters:
Laser oscillation in the fiber optical wave, low dissipation, good stability and is not affected by external dust gas and mechanical looseness, the output of a laser beam is stable.
100000 hours of zero- maintenance.
Processing speed is 2 to 3 times the traditional laser marking machine.
Wind cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption (800 w) or less, use cost.
Integrated design, small size (there are a whole cabinet and portable optional).
Environmental adaptation ability strong can be in vibration, shock, dust, humidity environment continuous work, easy to implement with optical fiber coupling, which can realize remote work.
Bar code, qr code, graphics, text rules and irregular marking serial number, etc.
Software running on WINDOWS platform, Chinese/English interface, can be compatible with AUTOCAD, CORELDRAW, PHOTOSHOP software, such as PLT, PCW, DXF, BMP, etc, but also can be used directly SHX, ttf font.
Application Scope:
Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
Advantage: 1, Perfect design software, easy to learn and operation 2, Less Mechanical Faliure 3, Operation Status: Fly and Standstill 4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter. 5, The code can not move or erase it 6, No consumer goods, less production cost Terms of Payment: T/T, LC After-sale Service 1, Warranty Valid: 12 Month 2, Online or Spot Training
Details and Specifications:

Specifications

Output Power: 30W Beam quality M2: <2 Laser wavelength: 1064 nm Air cooling Pulse frequency: 20 KHZ - 100 KHZ Marking range: 110 mm x 110 mm (can be customized) MarkingSpeed:7000mm/s Marking Depth: ≤0.3mm Marking Line Width: 0.01-0.2mm (based on difference material) Min character Size: 0.015mm. Repeat accuracy: + / - 0.003 mm Marking area locating: Red-light locating system. Power supply: AC 100-260 v 50/60 hz Power: ≤800W

Delivery&Package

Delivery Time: 3-7 days after received Advance Payment By Vessel or Air Plane Standard Package: Wood Carton, Carton Box
