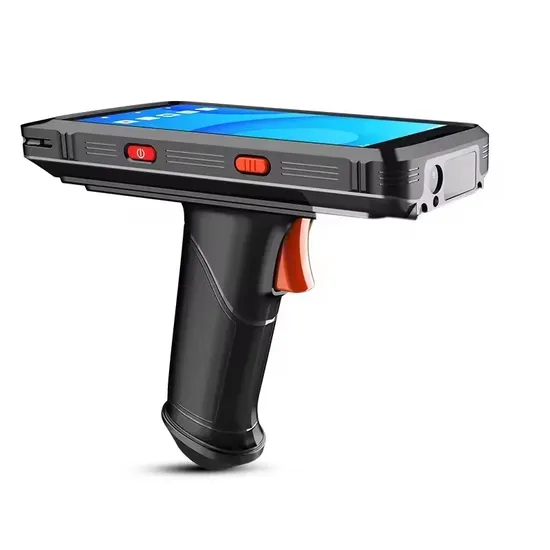

XT8002B XTIOT China 4G 64G Android 10.0 Pda Barcode Scanner

Product Description

XT8002B XTIOT China 4G 64G Android 10.0 Pda Barcode Scanner Detailed Photos
Product Parameters

XTIOT XT8002B Android Data Collector PDA Specification
System Parameter
Operate System					Android 10.0
CPU					8-core 64bit CPU, basic frequency 2.0GHz
Storage					RAM:4GB ROM:64GB
Expand Storage					Support 256GB Micro SD card
Communication Interface					Type-c Interface
Card Slot					2 * Sim Card slots 2 * PSAM Card Slots 1 * TF card slot
Display Screen					5.5 inch IPS HD screen Resolution: 720*1440 pixel
Touch Screen					Industrial multi-touch capacitive screen
Camera					Front 5 million Rear 13 million With Flashlight Support automatic focusing
Battery					5200mAh lithium polymer battery
Standby Time					360 hours standby time (turn off wireless communication function)
Working Time					Over 12 hours (full charging)
Charging Time					Less than 6 hours
Electric Torch					Low consumption LED for emergency use
Indicator Method					Charging Light Indicator
Keyboard					Scan key, function key
Barcode Scanner Parameter
Barcode Scanner Engine					XT728M
Resolution					640px*480px CMOS
Barcode Reading					1D: EAN-8, EAN-13, UPC-E, UPC-A, ISBN, ISSN, Code128, UCC/EAN-128, AIM-128, Code 39, Code 93, Code 11, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5, Industrial 25, Standard 25, Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS-Limited, RSS-Expand)
					2D: PDF417, Data Matrix, QR, Micro QR
Resolution					1D≥3mil
Printing Contrast					≥25%
Depth of Field					EAN 13 (13mil): 65-350mm Code 39(5mil): 40-150mm Data Matrix(10mil): 45-120mm QR Code(15mil): 30-170mm
Communication Parameter
Communication					2G: GSM/GPRS/Edge(850/900/1800/1900MHz) 3G: WCDMA( 850/1900/2100MHz); 4G: TD-LTE Band38/39/40/41 FDD-LTE Band: 1, 2, 3, 4, 7, 17, 20
WIFI					2.4G/5G dual frequency, IEEE802.11a/b/g/n/ac
Bluetooth					Bluetooth 4.1
GPS					GPS+Beidou GPS, ±5m
UHF Read and Write Function
Support Frequency					915MHz (902-928MHz)/865MHz (865-868MHz) (choose one )
Support Agreement					For EPC C1 GEN2 ISO18000-6C agreement
Reading Distance					Optional 0-3m distance (related to tag and environment)
Environment Parameter
Work Temperature					-20ºC~50ºC
Storage Temperature					-20ºC~70ºC
Humidity					5%~95%(No condensation)
IP Degree					Host IP65
Appearance
Size					170×81×28±2(mm)
Weight					400g
Accessories List					Lithium polymer battery * 1pcs, power adaptor * 1pcs, Type-C charging cable Optional: Charging Base, Trigger

Our Advantages
Company Profile
Packaging & Shipping
After Sales Service
FAQ
Q1: What' the communication port?
A1: Default is USB, RS232 and TTL is for optional.
Under USB port, there are USB-keyboard, and USB-virtual serial port.

Q2: What kind of barcode can the scanner read?
A2: 1D and 2D barcode.
1D barcode including EAN-8, EAN-13, Code 128, UPC-A, UPC-E, Code 39, Code 93, Matrix 2 of 5, Standard 2 of 5, Industrial 2 of 5, Codabar, MSI Plessey, Plessey, GS1 DataBar, ISBN, ISSN, ISBT 128, etc.
2D barcode including QR code, PDF417, Micro QR code, Datamatrix, etc.

Q3: What's the size?
A3: We can send the 2D drawing and 3D file of the scanner, which contain all dimensions of the scanner.

Q4: What's the baud rate?
A4: Default baud rate is 9600. You can set the baud rate by using user manual, baud rate from 9600 ~ 115200 (Max).

Q5: Can I add prefix and suffix?
A5: Yes, support adding 10 characters prefix/suffix.

Q6: Can I use the scanner at outdoor?
A6: It can work under sunlight, but it's not waterproof, to use the scanner at outdoor, you will need to add a cover for the scanner to protect it in rainy days.

Q7: Can the scanner work in high temperature environment?
A7: The working temperature is -20ºC ~ 60ºC.

Q8: Is there LED lights?
A8: Yes, there are 4 LED lights.

Q9: Can you customize the cable?
A9: We provide custom service for cable length, cable PIN assignments, etc.

Q10: Do you have product certificates?
A10: Product has CE, ROHS, FCC certificates.

---
