Basic Info.
Model NO.
TMZ120,130,140,150,160,170,180,190,200,210,220,230
Application Field
Agriculture
Farming Policy
Bed Planting Machinery
Operation
Arable Machinery, Continuous Running Operation
Arbor Configuration
Horizontal Axis
Color
Green, Red, Yellow, Blue, Black,Orange etc
Transmission
Gear Transmission
Pto Turning Speed (Rpm)
540
Machine Typetrotary Tiller Conditiontnew
40/60
Tilling Depth (Cm)
8-14cm (3``-6``)
Blades Shaft Speed
232rpm
Transport Package
Iron Crate Package or Wooden Package
Production Capacity
3200pieces/Year
Product Description
Product Description

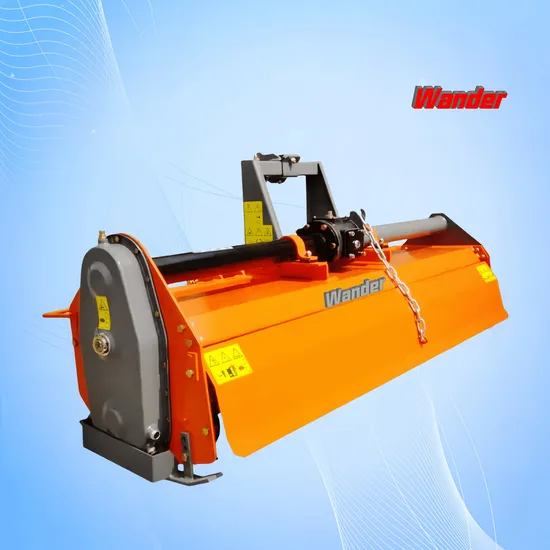

The Rotary Tillers TMZ Series was Heavy Duty Rotary Tiller
Rotary Tillers need to be heavy in order for the tines to penetrate the ground,
and reduce bucking.
Is designed for tilling and breaking up to 500 acres per year.
Rotary tillers prepare soil in flower beds, gardens, landscape beds, turf grass seed
and sod beds.
More specifically, tillers break up heavily compacted, unworked soils to allow for
better water percolation and air movement to plant root zones.
Product Parameters
TMZ model cultivator for sale(Gear drive)4 or 6 blades/flange
| Rotary Tillers TMZ Series |
| Model | Working Width | Blades shaft speed | Number of blades | Tilling depth | Fitted power | Net weight | Gross weight | Package Size |
|
| TMZ120 | 120cm
(47``) | 232rpm | 24 | 8-14cm
(3``-6``) | 25-30hp | 242kg
(534lbs) | 277kg
(611lbs) | 145x73x73cm
(57``x29``x29``) |
| 36 | 257kg
(567lbs) | 292kg
(644lbs) |
| TMZ130 | 130cm
(51``) | 28 | 30-35hp | 252kg
(556lbs) | 287kg
(633lbs) | 155x73x73cm
(61``x29``x29``) |
| 42 | 267kg
(589lbs) | 302kg
(666lbs) |
| TMZ140 | 140cm
(55``) | 28 | 30-35hp | 259kg
(571lbs) | 294kg
(648lbs) | 165x73x73cm
(65``x29``x29``) |
| 42 | 274kg
(604lbs) | 309kg
(681lbs) |
| TMZ150 | 150cm
(59``) | 32 | 30-35hp | 269kg
(593lbs) | 309kg
(681lbs) | 175x73x73cm
(69``x29``x29``) |
| 48 | 284kg
(626lbs) | 324kg
(714lbs) |
| TMZ160 | 160cm
(63``) | 32 | 40-45hp | 274kg
(604lbs) | 324kg
(714lbs) | 185x73x73cm
(73``x29``x29``) |
| 48 | 289kg
(637lbs) | 339kg
(747lbs) |
| TMZ170 | 170cm
(67``) | 36 | 50-55hp | 281k
(619lbs)g | 336kg
(741lbs) | 195x73x73cm
(77``x29``x29``) |
| 54 | 299kg
(659lbs) | 354kg
(780lbs) |
| TMZ180 | 180cm
(71``) | 36 | 50-55hp | 288kg
(635lbs) | 348kg
(767lbs) | 205x73x73cm
(81``x29``x29``) |
| 54 | 306kg
(675lbs) | 366kg
(807lbs) |
| TMZ190 | 190cm
(75``) | 40 | 55-60hp | 298kg
(657lbs) | 358kg
(789lbs) | 215x73x73cm
(85``x29``x29``) |
| 60 | 318kg
(701lbs) | 378kg
833lbs) |
| The following Rotary Tillers are in high collocates: |
| TMZ200 | 200cm
(79``) | 232rpm | 40 | 8-14cm
(3``-6``) | 60-65hp | 308kg
(679lbs) | 368kg
(811lbs) | 225x73x73cm
(89``x29``x29``) |
| 60 | 328kg
(723lbs) | 388kg
(855lbs) |
| TMZ210 | 210cm
(83``) | 44 | 65-70hp | 320kg
(705lbs) | 380kg
(838lbs) | 235x73x73cm
(93``x29``x29``) |
| 66 | 342kg
(754lbs) | 402kg
(886lbs) |
| TMZ220 | 220cm
(87``) | 44 | 70-80hp | 335kg
(739lbs) | 395kg
(871lbs) | 245x73x73cm
(96``x29``x29``) |
| 66 | 357kg
(787lbs) | 417kg
(919lbs) |
| TMZ230 | 230cm
(91``) | 48 | 80-90hp | 350kg
(772lbs) | 410kg
(904lbs) | 255x73x73cm
(100``x29``x29``) |
| 72 | 374kg
(825lbs) | 434kg
(957lbs) |
| TMZ240 | 240cm
(94``) | 48 | 90-100hp | 365kgs
(805lbs) | 425kg
(937lbs) | 265x73x73cm
(104``x29``x29``) |
| 72 | 389kgs
(858lbs) | 449kg
(890lbs) |
The 3 point linkage of TMZ150-TMZ180 can be moved by adjust the screws
Three Kinds of PTO Shaft to choose:
Other Rotary Tillers options available :
Rotary Tillers TL Series:
https://cngooler.en.made-in-china.com/product/sXiJQHvDOgUm/China-Rotary-Cultivator-High-Box-Rotary-Tiller-Rotary-Tiller-Rotavator-with-Chain-Drive-Tl-Series.html
Rotary Tillers TLM Series:
https://cngooler.en.made-in-china.com/product/UBDmFhbcngpv/China-CE-Proved-Rotavator-Cultivator-Roller-Rotary-Hoe-Tiller-Tlm-Series.html
Rotary Tillers TM Series:
https://cngooler.en.made-in-china.com/product/QSlmxFXKOPRn/China-CE-Approved-3-Point-Rotary-Tiller-Compact-Tractor-Mounted-Rotary-Tiller-Cultivator-Sale.html
>>
