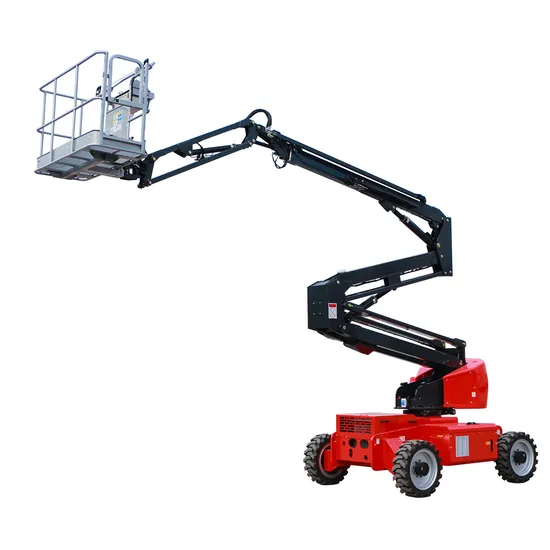

CE Building Material Shops Telescopic Articulated Lift Boom Lift

US$12,999.00
1-99 Pieces
US$5,999.00
100+ Pieces

Basic Info.

Model NO.
boom lift
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Special Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Working Height
6-63m
Color
Customers′ Requirements
Weight
18500 Kg
Power
75kw
Overall Dimensions
10300*2200*1200mm
Product Name
Hydraulic Platform Lift
Transport Package
Box
Specification
10300*2200*1200mm
Trademark
everstar
Origin
China
Production Capacity
500000 Set/Years

Product Description

Product Description
Product Parameters
16-28m Diesel Articulating Boom Lifts
Model
EAB16J
 EAB18J
 EAB20J
 EAB22J
 EAB26J
 EAB28J
Max. Working Height(m)
16.7
 18
 20.2
 22
 26.2
 28
Max. Platform Height(m)
14.7
 16
 18.2
 20
 24.2
 26
Max. Lift Capacity(kg)
230
 230
 230
 230
 230
 230
Max. Horizontal Outreach(m)
8.1
 9.55
 11.6
 12
 15.4
 17.28
Stowed Length(m)
6.72
 7.26
 8.23
 8.54
 10.65
 11.7
Stowed Width(m)
2.28
 2.28
 2.38
 2.38
 2.48
 2.58
Stowed Height(m)
2.47
 2.4
 2.5
 2.55
 2.85
 2.97
Platform Size
1.83×0.76
 1.83×0.76
 1.83×0.76
 1.83×0.76
 2.44×0.91
 2.44×0.91
Wheel base
2.4
 2.4
 2.4
 2.4
 3
 3
Drive speed stowed(km/h)
4.2
 4.2
 4.2
 4.2
 4.2
 4.2
Gradea bility
45%
 45%
 45%
 45%
 45%
 40%
Engine Power(kw)
≈36kw@2400rpm
≈36kw@2500rpm
Fuel tank capacity(L)
100
 100
 100
 100
 100
 110
Weight(kg)
7500
 7800
 8800
 9380
 15870
 17000

32-47m Diesel Articulating Boom Lifts
Model
EAB32J
EAB40J
EAB47J
Max. Working Height(m)
32
40.1
47.5
Max. Platform Height(m)
30
38.1
45.5
Max. Lift Capacity(kg)
480
480
480
Max. Horizontal Outreach(m)
20.2
21.6
23
Platform Size
2.44×0.91
2.44×0.91
2.44×0.91
Wheel base
3.66
3.96
5.6
Drive speed stowed(km/h)
4.4
4.4
4.4
Gradea bility
40%
40%
40%
Engine Power(kw)
≈54kw@2400rpm
≈54kw@2400rpm
≈81kw@2400rpm
Fuel tank capacity(L)
151
151
200
Weight(kg)
18000
24500
26500

We also have many other models, including electric articulated boom lift, electric telescopic boom lift, diesel articulated boom lift, diesel telescopic boom lift and so on
