Premium Quality Drilling Tapping Machine Z4112b1/Zs4112b1/Z4116b1/Zs4116b1/Z4120b1/Zs4120b1/Z41125b1/Zs4125b1

Product Description

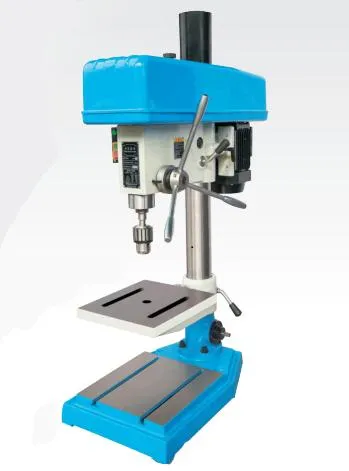

Premium Quality Drilling Tapping Machine Z4112B1/ZS4112B1/Z4116B1/ZS4116B1/Z4120B1/ZS4120B1/Z41125B1/ZS4125B1

The spindle box, column and base are made of high quality cast iron and treated by aging, which is stable, strong and durable; High precision, high speed, widely used in instruments, meters and cameras and other industries.

Specification:

Model No.	ZB4116G		ZB4120G	ZB4132G/ZB4132GP	ZB5032G/ZB5032GP
Item No.
Moving
Max.Drilling capacity	Ø16 mm		Ø20mm Steel	Ø31.75 mm Steel	Ø31.75 mm Steel
Max.Tapping capacity	M12 Steel		M16 Steel	M20 Steel	M20 Steel
Distance spindle axis to column generating line	193 mm		240 mm	265 mm	265 mm
Spindle
Spindle travel	Manual 100 Automatic 75mm		Manual 135 Automatic 75mm	Manual 150 Automatic 105mm	Manual 150 Automatic 105mm
Max.Distance spindle nose to table	330 mm		366 mm	390 mm	820 mm
Max .Disiance spindle nose to base	613 mm		678 mm	745 mm	1235 mm
Diameter of column	70 mm		85 mm	100 mm	100 mm
Spindle speeds range	320~2730 r/min		340~2180 r/min	320~1820 r/min	320~1820 r/min
Spindle taper	MT2		MT2	MT3	MT3
Max.feed rate	110 mm/min		109 mm/min	113 mm/min	113 mm/min
Dimension of worktable surface	265x285 mm		300x320 mm	380x400 mm	380x400/330x330
Other
Motor	0.75 kw	1.1 kw		1.5 kw	1.5 kw
Net weight	153 KG	183 kg		238 kg	310 kg
Packing dimension(LxWxH)	850x540x1280 mm	990x590x1400 mm		1040x640x1510 mm	1040x640x2050 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
