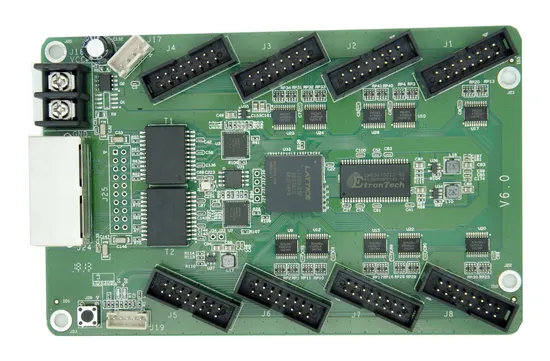

Printed Circuit Mother Boards Assembly SMT DIP PCB PCBA Medical Camera 5g Solar Inverter

Product Description

1) We do PCB from double side up to 30-layer Multilayer PCB, HDI jobs.
2) If you have repeat orders from other suppliers, and you want to transfer to Intech, we can accept FREE OF TOOLING.
3) Except excellent quality and professional service, we also pay every detail for our customers, for example package to use Desiccant packs & moisture indicator in vacuum-sealed pack to protect PCB.
4) Material: We have FR4 TG135/TG158/TG180 normal material in stock, also have FR1/ FR2/ FR3/ CEM1/ CEM3/ ROGERS/ ARLON/ ISOLA.
5) Rigid / flex/ flex-rigid PCBs with UL approved.
6) Flexible,quickly feedback for customers always.
7) Quickly offer will be less then 4 hours, Some top urgent inquiry we can offer within 1hour.
Testing Procedures For PCB PCBA assembling:
We perform multiple quality assuring procedures before shipping out any PCB board. These include:
* Visual Inspection
* Flying probe, fixture tool
* Impedance control
* Solder-ability detection
* Digital metallographic microscope
* AOI (Automated Optical Inspection)

Layers	1-16 layers	Min Board Thickness(2-layer)	0.2mm
Max Board Size	635 × 1100mm	Min Board Thickness(4-layer)	0.6mm
Min Board Size	20 × 30mm	Min Inner-layer Thickness	0.1mm
Min Trace	0.1mm	Min Annular Ring	0.1mm
Min Space	0.1mm	Min Hole Location Tolerance	±0.075mm
Min Hole Size	0.2mm	Min Hole Size Tolerance	±0.05mm
Board Warp	≤ 1°	Min Outer Dimension Tolerance	±0.1mm
Solder Mask	Green, Yellow, Red, Black, Blue, White
Surface Finish	HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP
Board Material	FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic
Acceptable file	Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD
CAM software	Genesis, CAM350

PCB + Assembly
More and more of our existing PCB customers are now asking us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' requirements, Hongzhou develops from a PCB manufacturer to a one-stop PCBA service provider, including PCB assembly, components sourcing, stencils, cable assembly and final product assembly and testing.

Available Services PCB Manufacturing PCB Assembly Components Sourcing SMT Stencils Cable Assembly PCBA Testing Final Product Assembly

Assembly Technologces SMT THT Reflow Soldering Wave Soldering Hand Soldering Repair/Rework Mixed Assembly Technologies

PCB manufacturing Capacity

Items	Capability
PCB Layers	1-28 layers
PCB material	FR4, FR5, Aluminium,High Tg FR4, Halogen Free, Isola, Rogers
PCB Finished Board Thickness	0.2mm ~ 7.0mm(8mil-276mil)
PCB Copper Thickness	1/3oz ~ 7oz
PCB Max gold plating thickness	50 microinch
PCB Min. Trace Width/Space	0.075/0.075mm(3/3mil)
PCB Min. Finish Holes Size	0.1mm(4mil) for laser holes; 0.2mm(8mil) for mechanical holes
PCB Max.Finshed Size	600mm x 900mm (23.6" x 35.43"
PCB Hole Tolerance	PTH:±0.076mm(+/-3mil), NTPH:±0.05mm(+/-2mil)
PCB Soldermask Color	Green, White, Black, Red, Yellow, Blue,ect
PCB Silkscreen Color	White, Black, Yellow, Blue
PCB Impedance Control	+/-10%
PCB Profiling Punching	Routing, V-CUT, Chamfer
PCB Special Holes	Blind/Buried holes, Countersunk holes
PCB Surface Finishing	HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, Carbon, etc.
PCB Certificate	UL, ISO9001, ROHS, SG

pcb pcba Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technolog
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) SMT OEM PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT& Solder Assembly Line
7) High density interconnected board placement technology capacity
SMT PCBA Capacity

Items	Capacity
smt PCBA Min. IC Pitch	0.30mm(12mil)
smt PCBA Foot Pin	SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA
smt PCBA Min. Chip Placement	0201
smt PCBA Max. PCB Size	410mm x 600mm(16.2" x 23.6")
smt PCBA Maximum BGA Size	74mm x 74mm(2.9" x 2.9")
smt PCBA BGA Ball Pitch	1mm ~ 3mm(4mil ~ 12mil)
smt PCBA BGA Ball Diameter	0.4mm ~ 1mm(16mil ~ 40mil)
smt PCBA QFP Lead Pitch	0.38mm ~ 2.54mm(15mil ~ 100mil)
smt PCBA Method	SMT, DIP, AI,MI assembly
smt PCBA Certification	ISO9001, ISO13485, IATF16949

Turnkey Electronics manufacturing Service

pcb service	PCB circuit design, PCB Layout, pcb manufacturing, pcb copy
PCB components	PCB components advicing, PCB compoments sourcing
PCBA	OEM PCB prototype assembly, pcb with components,
Testing	PCBA AOI test, PCB Assembly BGA X-RAY test, PCBA ICT test, PCBA FCT test
Conformal coating	Conforal coating via coatingmachine , and UV oven
Box Build	BOX build, box assembly
Turnkey service	wire harness, sheet metal, plastic

Why choose us?
1. One-stop EMS (electronics manufacturing service) from pcb and assembly to box build assembly
2. Hight Quality. JXE is ISO9001, ISO13485, ISO16949 certified company, we are long-term cooperated to global top rank electronics original manufacturer or agent.
3. Fast turnaround. Over years experiance with global customer make us flexiable and better service to customers
4.IP Protection
FAQ
Q1: What files do you use in PCB and assembly Quotation?
A1: Gerber, pcb. Auto CAD + Bill of Material
Q2: How do you make sure the quality?
A2: Our Product is all 100% tested including Flying Probe Test (for sample), E-test (mass) or AOI.
Q3: Can we visit your company?
A3: Of course! Welcome to visit our company, Floor Two,Building 13,Floor One And Two,Building 17 (Hongfa Electronics Factory)Hongfa Industrial Park,Shixin Community,Langxin Community,Shiyan Street,Baoan District,Shenzhen
Q4: What is the lead time?
Q4: It takes 3-5 working days for sample, 7-10 working days for batch production based on files and quantity.
Q5: Will you keep our information and files secret?
A5: Sure! It is our basic principle to keep business secrets to protect our customers' rights and behalf.
Q6. How to work with you?
A6: -Email and send us the PCB layout file, BOM list
- We will provide reply confirmation within 12 hours and reply to the offer within 3-5 days.
- Waiting for your company to confirm the price, order and payment method.
- We will start the production.

---
