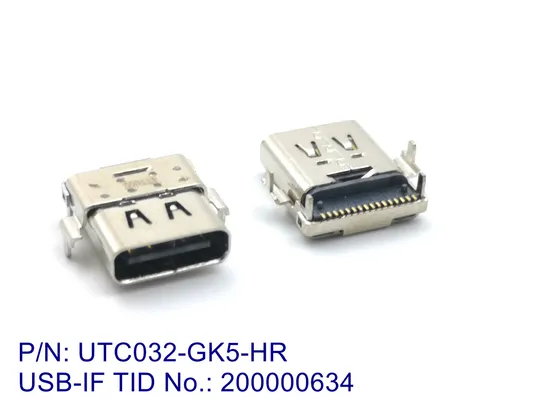

USB-C Type Connector, USB-If Tid Approved, Comply with IEC62680 Standard

Product Description

USB-IF TID Certification
Product Description

SHELL MATERIALS:	STAINLESS STEEL
MIDDLE CONTACT MATERIALS:	STAINLESS STEEL
HOUSING MATERIALS:	THERMOPLASTIC. UL94-V0
CONTACT MATERIALS:	HIGH-CONDUCTIVITY COPPER ALLOYS
LOW LEVEL CONTACT RESISTANCE:	0.04 ohm max.
INSULATION RESISTANCE:	100M ohm min.
DIELECTRIC WITHSTANDING VOLTAGE:	100 VAC
CONTACT CURRENT RATING:	5A max
INSERTION FORCE:	5-20N
EXTRACTION FORCE:	8-20N
DURABILITY:	10,000 CYCLES
IR REFLOW CONDITION PEAK TEMPERATURE:	260ºC-10s

Electrical parameters:
1. Materials:
Shell: Stainless Steel
Middle Contact: Stainless Steel
Housing: Thermoplastic UL94-V0. Black
Conntact: High-conductivity copper alloys
2. Plating:
Connect: 80u" min. Nickel underplating Overall
Plated cold 30u" min. on contact area
or reference part no. code
plated Au 1u" min. on solder area
Shell: plated Nickel
3. Electrical Characteristics:
Low level contact resistance: 40mΩ max.
Insulation resistance: 100MΩ min.
Dielectric withstanding voltage :100V AC
Contact Current Rating: 5A Max.
4. Mechanical Characteristics:
Insertion Forec: 5~20N
Extractiong Forec: 8~20N
Durability :10,000Cycles min.
5. IR Reflow Condition Peak Temperature: 260 ºC - 10s

Company Profile ABOUT US: Palconn Technology Co., Ltd. was established in Nov of 2005,which is mainly engaged in production of connectors and cables R&D, production, and sales. As a high-tech company, it provides connectors of USB 2.0, USB 3.0, Type C connector, Micro, Jack, etc. and cables of HDMI, USB2.0 and 3.0, Type C, RCA, Displayport, etc., which are widely used in communication products, such as mobile phone and computer, and high-end field of automobile and medical apparatus and instruments.
Our Advantages **New product development and manufacturing capabilities: Hardware molds and plastic molds from design and development to production are completed in the factory.**Production and manufacturing capabilities: We have semi-automated and fully automated production lines, as well as dust-free production workshops. Meet all kinds of products production and manufacturing.
FAQ Question: Can you customize the length, color, and special requirements we need?
Answer: Of course. We tailor our products according to the actual needs of our customers.
Question: Are the toolings produced in your factory developed internally? Because we have our own brand and we need to protect it.
Answer: All our toolings and fixtures used in production are designed and manufactured in-house. We have already taken into account the concerns you mentioned. We respect intellectual property rights and will sign a confidentiality agreement with customers.
Question: How long is your production delivery time?
Answer: The standard delivery time is usually 4 weeks from the factory. For special requirements, we can assist in meeting urgent delivery times.
Question: How do you ensure the quality of your products?
Answer: For USB Cable products, we undergo at least 32 reliability tests before delivering to customers. This includes electrical performance, mechanical performance, and environmental testing.

---
