Low Altitute 5km X Band Detection Radar

Product Description

Border and Coastal Defense Radar ASR216X-1X5K-3D
3D X Band Pulse Doppler Radar

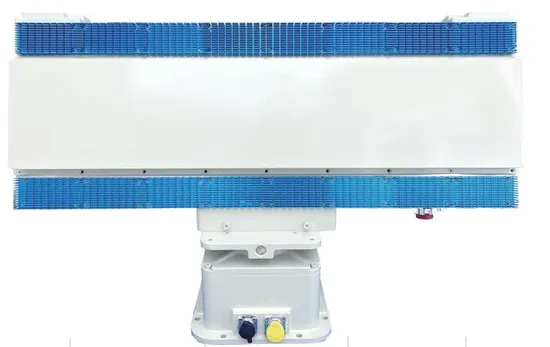

The border and coastal defense radar mainly consists of one radar array and one turntable , used for pedestrians , vehicles , drones in key areas such as border airports , as well as for maritime defense , achieving zone 30 control and providing target orientation , distance , altitude , and speed .
Features:
Active Phased Array Radar
Adopting advanced active phase control system to enhance the detection effect of radar
DBF Technology
DBF technology can improve anti - interference ability by transmitting multi beam technology
High real - time, high - precision, and multifunctional
Capable of maintaining high - precision tracking for long - range detection targets, providing effective judgment basis for border defense soldiers
Detection range:
≥5.0km (Drone)
≥8.0km (Pedestrian)
≥10.0km (Vehicle)
≥15.0km (Vessel)

Working system	Phased Array control system ( Azimuth machine scanning + Elevation phase scanning )
Frequency band	X band
Detection range	≥5.0km( Civil drone )
	>8.0km( Pedestrian )
	>10.0km( Vehicle )
	>15.0km( Vessel )
Detection speed	0.5m/ s -83m/ s
Azimuth accuracy	≤0.3( Searching );≤0.3*( Tracking )
Elevation accuracy	≤1.0°( Searching );≤0.5°( Tracking )
Data rate	≤5s/ Circle
Date interface	RJ45/1- way 100 Gigabyte Ethernet
Power supply	≤250W( Power consumption )AC220V( Input )
Working temperature	-40° C ~60ºC
Weight	≤26Kg

---
