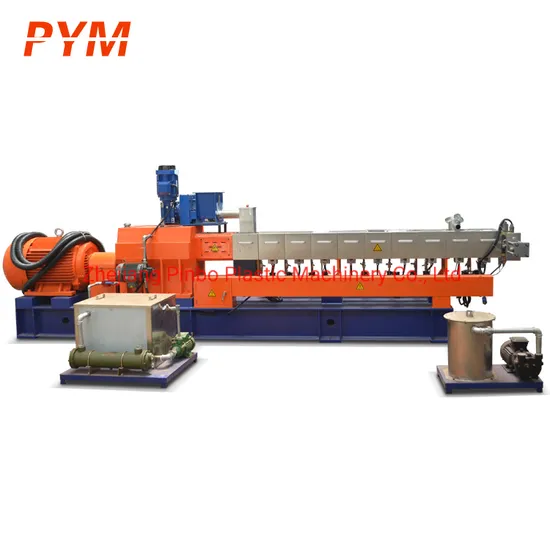

New Products Plastic Granulation Machine

Product Description

Product Description
This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. Its equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.
Main technical :

Model	SJ-B90	SJ-B100	SJ-B110	SJ-B120
Type Diameter of Screw Stem	φ90	φ100	φ110	φ120
Major Diameter Ratio of Screw Stem	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2600kg	2800kg	3000kg	3200kg
Cover dimensions (l×w×h) (mm)	4000×1500×1800	4000×1500×1800	4000×1500×1800	4000×1500×1800

Why choose us?
A> long time experience and history
B> long time nitriding treatment and heating treatment by itself
C>advanced Fanuk series CNC computer-controlled milling machines
D>depth hole drilling machine in 18meters length, which ensure the
Straigtnss of barrel inside.
E> CAD drawing confirmation before start making
F> Prompt after sale service
G>Land owner and registration capital 25, 000, 000RMB
H> prompt after-sale
Packaging & Shipping:
Means of transport: Ocean,Air,Express.etc
Production time: About 45 days after we receive the advanced payment.
We accepet T/T, L/CWestern Union.etc
Company Information
Zhejiang pinbo plastic machinery co.,ltd is located in ruian wenzhou city with brand of PYM(Former Ruian yumin machine screw co.ltd since 1988). The company is specialized in making screw barrel, gearbox zlyj series, t die, filter and extruder machine. It has become one of the largest supplier of main parts in Ruian city which is the basement of plastic machines.

It owns many computer-control CNC milling machines in length 8000mm In Fanuk
series,18000mm length deep hole drilling machine and other advanced equipment.
Long time nitriding treatment for 7days and nights greatly ensure the hardness and lifetime of its products. Meanwhile, the company and its products have passed assessment by SGS company, Bureau of Veritas, Tuv and Ce certificate.
FAQ:
1,Q: What's your business type?
A: Manufacturer.
2.Q:Guarantee time and after-sale?
A:one year guarantee time, after one year , we have professional after-sales department.
3, Q: What's your MOQ?
A: 1 piece for different size recycling machine .
4.How to contact us ?
A:Send your inquiry details in the below for product .Click "send "now .

If there is any problem,you can contact with us at any time, we will reply you as soon as possible! Welcome to visit us at any time!
We promise: We assure the customer benefits, We provide competitive price, We Emphasis On Cooperation !

---
