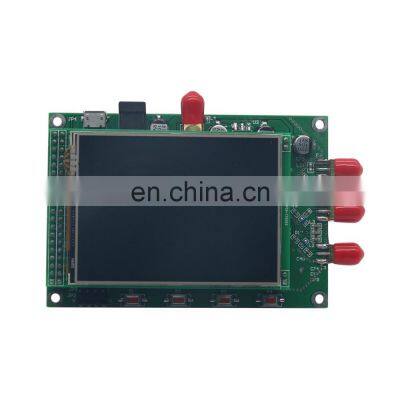

ADF5355 Colour Touch Screen Module VCO Microwave Frequency Synthesizer PLLProduct Description Module Features: - ADF5355 High frequency signal source colour screen module - ADF5355 PCB beautiful appearance- Output frequency range:A+,A-output:250M-6.8G,B output (Double A frequency output)6.8G-13.6G;-A output terminals output frequency resolution is 10Khz.- Power supply method:5V power supply,it can be directly charged by USB. -Colour screen display,touch screen operation,you can achieve point frequency and sweep frequency (Note:Don't tear off the protective film on the display screen.Because the touch screen is resistance screen and scratching will causes the touch functions disabler )- The module has save function and it can storage the setting parameters.- Module actual measured waveform 500M,1Ghz,2Ghz,3Ghz,4Ghz,5Ghz,6Ghz,7Ghz,7.8G, - Module application:- Wireless Infrastructure (W-CDMA,TD-SCDMA,WiMAX,GSM,PCS,DCS,DECT)- Point to point/point to multi-point Microwave link- Satellite/V-SAT- Test equipment / instrument- Clock generationChip description:- ADF5355 combines with external loop filter and outer reference frequency to use.It can achieve decimal N frequency division or round number N frequency division phase-locked loops (PLL) frequency synthesizer.The microwave broadband VCO deign achieves 6.8 GHz~13.6 GHz working frequency allowed in a RF output.A series of frequency divider for other frequency output can achieve 54 MHz~6,800 MHz working frequency.- ADF5355 has integrated VCO and the fundamental output frequency range is 3400 MHz~6800 MHz.In addition,VCO frequency can be conducted 1,2,4,8,16,32 or 64 frequency division.So the user can produce 54MHz RF output frequency.For the requiring isolation applications,RF output stage can be mute.The mute function can be controlled both through pins and software.- All the on-chip register are controlled through simple three-linear interface.ADF5355 uses 3.15 V~3.45 V analog as well as digital power to work with 4.75 V~5.25 V charge pump and VCO power supply.Besides,ADF5355 has built-in hardware and software power saving mode.- RF output frequency range:54 MHz~13,600 MHz decimal Fractional-N Frequency Synthesizer and round number N frequency division synthesizer- High resolution 38 bits modulus- The working frequency has rised up to 125 MHz Phase Frequency decetor (PFD)- Reference frequency is up to 600 MHz- Within −40°C~+85°C range maintain frequency locking.- Low phase noise voltage controlled oscillator (VCO)- Programmable 1/2/4/8/16/32/64 frequency division output- Analog and digital power supply:3.3 V- Charge pump and VCO power supply:5 V (typical value)- Logical compatibility:1.8 V- Programmable dual modulus prescaler:4/5 or 8/9- Programmable output power - RF output mute function - Analog and digital locked detectorNote:The above is chip description not the module function description.Package List:- 1 x ADF5355 Module- 1 x USB wire Attention:We provide PDF schematic diagram,based on STM32 ADF5355 buttom-level driver and other dates,not provide source program. Packaging & ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port .Company InformationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery. FAQQ1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8% Contact usPlease do not hesitate to contact me if you need any further informationWhatsapp/Tel/Wechat: 8619902906050Web: Address: Room 303 Building 2,Youpin Cultural and Creative Park,Zhangkeng,Minzhi Street,Longhua District,518131,Shenzhen,China(Mainland)
>>
