Versatile Revolving Stage Platform for Events and Productions

Product Description

Product Description
The revolving stage is placed in the middle of the stage or used in mobile mode. The speed of the revolving stage is generally 0.5-1 r/min. The revolving speed, starting and stopping

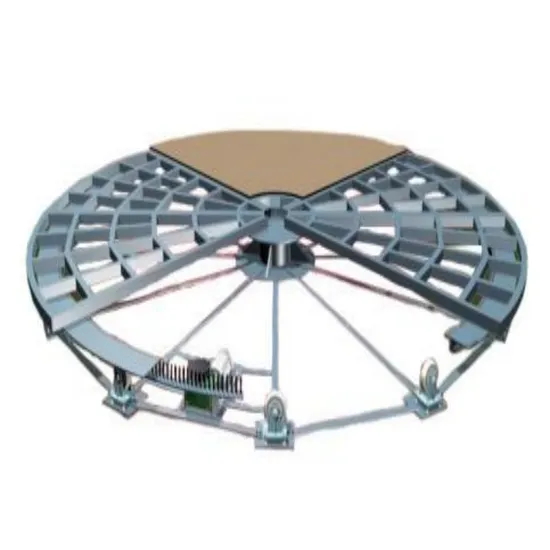

at fixed points, and the direction of rotation can be controlled by PLC or simulated.Rotary dance consists of upper stage,rotating track, supporting wheel set and driving assembly.In
ertia matching, in order to achieve accurate start and stop, the calculation of inertia equivalent is the key work. Eliminating reverse clearance is the most direct way to eliminate
reverse clearance reducer, or double drive clearance.

Detailed Photos
Widely used in halls, theaters, multi-functional halls, studios, cultural and sports venues, hotels and other cultural entertainment venues, as well as large-scale exhibitions and exhibitions of products.
Product Parameters

DYN Load-Pitch of Chain Link
model		07A	11A	15A	19A	23A	27A	31A		35A	39A	47A	53A	63A	71A	77A
trip (m)		DYN Load (kN)
0		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.30		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.50		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
0.80		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
1.00		6.3	14	25	39	57	78	98		134	173	222	280	360	450	650
1.20		4.3	12	25	39	57	78	98		134	173	222	280	360	450	650
1.40		3	9	25	39	57	78	98		134	173	222	280	360	450	650
1.60			7	25	39	57	78	98		134	173	222	280	360	450	650
2.00			4	17	39	57	78	98		134	173	222	280	360	450	650
2.50				11	26	57	78	98		134	173	222	280	360	450	650
3.00					18	55	78	98		134	173	222	280	360	450	650
3.50						40	78	98		134	173	222	280	360	450	650
4.00						30	78	98		134	173	222	280	360	450	650
4.50						23	63	98		134	173	222	280	360	450	650
5.00							50	82		134	173	222	280	360	450	650
5.50							40	67		134	173	222	280	360	450	650
6.00							33	55		118	173	222	280	360	450	650
6.50								46		99	159	222	280	360	450	650
7.00								38		84	136	202	280	360	450	650
7.50										72	117	173	280	360	450	650
8.00										62	101	150	280	360	450	650
8.50										53	88	131	258	360	450	650
9.00											76	115	226	360	450	650
9.50												99	200	360	450	650
10.00												80	178	330	450	650
10.50													159	295	450	650
11.00													142	265	450	650
11.50													127	240	450	650
12.00														220	450	620
12.50														195	420	580
13.00														180	390	540
13.50														165	360	500
14.00															330	460
14.50															300	420
15.00															280	380
16.00															260	345
	Please call us for confirmation when selecting model of this color parameters.								The color or above parameters can be selected according to the design.

Certifications
Packaging & Shipping
Company Profile
project:SHANGHAI EAST CHINA NORMAL UNIVERSITY One set of double-deck stage steel structure fence top,45 lifting booms,9 synchrnous receivers,1 set of movable counters,4 sets of lifting stage,2 sets of
lifting orchestra,1 set of lifting railings,1 set of steel fire curtain and 45 sets of lifting booms.
project:Shanghai Wild Animal Park One set of double-deck stage steel structure fence top,45 lifting booms,9 synchrnous receivers,1 set of movable counters,4 sets of lifting stage,2 sets of lifting orches
tra,1 set of lifting railings,1 set of steel fire curtain and 45 sets of lifting booms.
project:Hengdian Film and Television Qinhuai Eight Beauties Theater Stage steel structure fence top 1 set, stage boom 46 sets, front single-point stage 5 sets, steel fire curtain 1 set, lifting Orchestra 1 set, Orchestra lifting railing 1 set,plat-
form 2 sets, platform compensation platform 2 sets.
1. Company Overview
Wanying Technology (Taizhou) Co., Ltd., established in 2014, is a medium-sized industrial manufacturing enterprise located in the beautiful city of Taizhou. Since its establishment, the company has always adhered to the core values of "customer first, innovation, integrity, optimism and resilience", and is committed to continuously breaking through and innovating in the fields of foreign trade and industrial manufacturing.
2. Core business
2.1 Foreign Trade
As one of the core businesses of the company, Wanying Technology focuses on expanding and deepening its presence in the international market. We have established long-term and stable cooperative relationships with many well-known companies around the world, and our products are exported overseas, winning wide international acclaim. By continuously optimizing supply chain management and improving service quality, we continue to provide our customers with efficient and high-quality trade solutions.
2.2 Industrial Manufacturing
In the field of industrial manufacturing, Wanying Technology has advanced production equipment and a technical team, committed to researching and producing high-quality and high-performance industrial products. We keep up with industry trends, constantly innovate products and technologies to meet the growing diversified demands of the market.
3. Innovation and Technology
Wanying Technology attaches great importance to technology research and innovation, continuously investing funds and human resources in the development of new technologies and products. We have established close cooperative relationships with multiple well-known universities and research institutions to jointly promote technological progress and industrial upgrading in the industry.
FAQ
1.Is your product customized?
Thanks for your question. Yes, because the working conditions are different, all our products are customized depending on detailed requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a exact quote!
2.What the information should I provide when inquirying?
Thanks for your question. The more information you provide, the accurater solution we can prepare for you! It will be more
appreciated if you give us the information such as the lift capacity, span, lift height, power source or other specials.
3.How many operation methods for my selection?
Thanks for your question. The standard operating methods is controller with push buttons. Meanwhile, we can also provide the group controller.You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane OK for mine?
Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional engineer.

---
