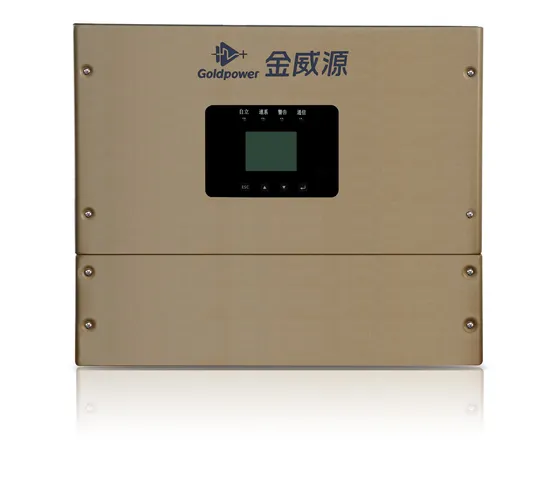

30kw DC to AC Power Inverter for Solar Power System

Negotiable 10 Pieces (MOQ)

Basic Info.

Model NO.
GPDA302-H
Output Power
30kw
Grid Type
Grid Inverter
Output Type
Three Phase Three Wire
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Input Volatage Range
DC 150-650V
Rated Input Voltage
DC 330V
Max Input Current
50A
Rated Output Power
30kw
MPPT Efficiency
More Than 99.5%
Enclosure
IP65
Communication Mode
RS485/RS232/Can
Transport Package
Carton
Specification
580*460*214.5 mm
Trademark
Goldpower
Origin
Shenzhen
HS Code
8504401990

Product Description

30KW DC to AC Power inverter for Solar Power Systemis a new kind of intelligent grid inverter with group and series conncetion(below 50KW).It can applied to commercial building,roof power station and other small-scale PV power station
Feature:
Flexible and efficient
*Max efficiency 96%,MPPT efficiency >99%;
*Wide input range:150-620V;
*Support Grid-tied and Off-grid;
*RS485;
*Support intelligent Grid on / off.
Easy Installation
*Compact and light weight;
*Easy AC plug.
Safe and Reliability
*IP65
*Dual cooling with Aluminum housing+Fan
Specifications:
Model GPDA302-H
Input Rated Input Voltage 330V DC
Full Load MPPT voltage range 150-600V DC
Input Voltage Range 150-600V DC
Max Input voltage PV1/PV2 25/25A
MPPT route 2
module number per MPPT 2
Grid-tied output Rated output power 30KW
Rated output current 28.6A
Max output current 31A
Rated Voltage 202V
Voltage Range 190-214V/AC
Rated power grid freqency 50/60Hz
Power factor ≥0.95
THD ≤5%
Output phase 3 phase 3 wire
Efficiency Max Efficiency ≥96%
MPPT Efficiency ≥99.5%
Protection Over voltage √
DC terminal insulation impedance monitoring √
DC component monitoring √
AC output short circuit √
Over temperature √
Islanding protection monitoring √
General Characteristics Isolation type Non-Isolation
Night power ≤3KW
Working temperature range -20ºC~50ºC
Cooling Natural+forced air cooling
Enclosure Grade IP65
Dimensions 580*460*214.5mm
Weight 40Kg
