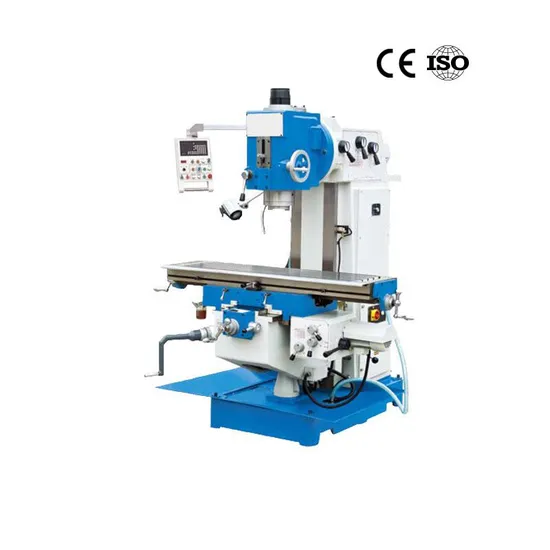

| Universal Milling Machine XW5032B Feature |
| ·Rectangular table guideways with high stability |
| ·Hardened and ground table surface, guideways |
| ·Automatic feeds on X,Y axes, motorized lifting and lowering of table on Z axis |
| ·Headstock swivels ±35° |
| Specifications | XW5032B |
| Table size | 1320x320mm |
| Table travel | 800x300mm |
| Number/Width/Distance of T-slot | 5-14mm-63mm |
| Spindle taper | ISO50 |
| Distance from spindle nose to table surface | 35-435mm |
| Distance from spindle axis to vertical guideway | 360mm |
| Spindle speed range | 58-1710rpm |
| Head swivel | ±35° |
| Spindle motor power | 4kw |
| Spindle travel | 70mm |
| Overall dimension | 1770x1820x1880mm |
| Machine weight | 2300kg |
