US$31,900.00-38,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Usage
Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type
Description
China Brand Refuse Garbage Compactor Truck for Was
Van Volume
5cbm 6cbm 7cbm 8cbm 9cbm 10cbm 15cbm 20cbm
Color
White Red Green Yellow Black Camo Compress Garbage
Tire
7.00-16 7.50-16 8.25-16
Chassis Brand
Dongfeng, FAW, Sinotruk, Forland, Foton
Certificate
ISO, CCC, BV Certificate
Thickness
Side 4mm, Bottom 5mm
Control Type
Electric Control with Manual Control
Material
Q235 Carbon Steel
Transport Package
Bulk, RO-RO, Container, Naked, Waxed
Specification
ISO, CCC and others
Production Capacity
800sets/Month
Product Description

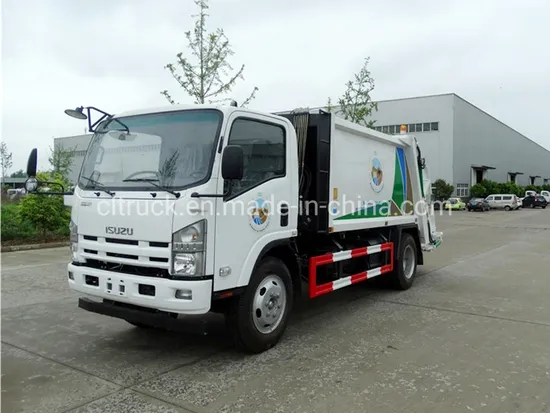

Garbage Compactor Truck 8 cbm Compression Garbage Truck 1SUZU 4x2 Garbage Truck 5 tons Refuse Garbage Compactor Truck
| Vehicle Parameter: |
| Product Name | Compactor Garbage Truck |
| Chassis No. | l-SUZU 700P |
| Driving Type | 4*2 |
| Gross Weight | 10550kg |
| Related Loading Mass | 3525kg |
| Curb Weight | 6830kg |
| Air condition | Chassis original |
| Dimension | About 7500×2300×2580(mm) (make the size available to load in 40HQ) |
| Wheelbase | 3815(mm) |
| Front/rear Axle Loading Capacity | 3500/7050kg |
| Approach angle | 17° |
| Departure angle | 13° |
| Front/rear Suspension | 1110/2095(mm) |
| Tire | 235/75R17.5 16PR,8.25R20 14PR, 6+1 PCS |
| Max Speed | 110(Km/h) |
| Engine parameters: |
| Model | 4HK1-TCG51 |
| Horse Power | 190hp |
| Displacement | 5193cc |
| Emission Standard | Euro 5 |
| Type | 4 stroke,4 cylinders, in-line, water cooling |
| Gear Box |
| Gear Box | l-SUZU MLD 6 forward and 1 reverse |
| Superstructure Parameter: |
| Tank Volume | 8CBM |
| Tank Shape | Arc-shape/Square Optional |
| Tank Material thickness | Bottom:4mm Side:4mm |
| Tank Material | Q345 |
| Compression Ratio | ≥2.5 |
| The effective volume of the bucket | ≥0.8m³ |
| Loading cycle time | ≤40 s |
| unload garbage time | ≤45s |
| control method | Automatic, Manual |
| Maximum pressure of hydraulic system | 20MPa |
| Control System | Siemens PLC |
| Engine power control | Fully automatic control |
| Tumbler mechanism | 240L Garbage bin(Others Optional) |
| Principle |
Garbage compactor truck (also known as Refuse Compactor, Refuse Collection Vehicle/RCV)
is a special type of urban environmental sanitation vehicle that collects and transports garbage, which can prevent secondary pollution caused by spilling along the road. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men (driver and operator) are required to perform the entire functionality of the compactor.
|
| Application |
It is mainly used to transport domestic garbage, but also can transport ash, sand, stone, soil and other bulk construction materials, ore or coal in mines or coal construction, widely applied to environmental sanitation, municipal administration, factories and mining enterprises, property communities, garbage concentrated residential areas.
|
| Advantages |
1. Simple, efficient garbage collection; 2. Automatic repeated compacting function with high compression ratio;
3. More garbage loading capacity;
4. Automatic operation;(labor saving)
5. Environmental-friendly;
6. High efficiency of vehicle utilization;
7. Decent sealing characteristics; |
|
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
>>
