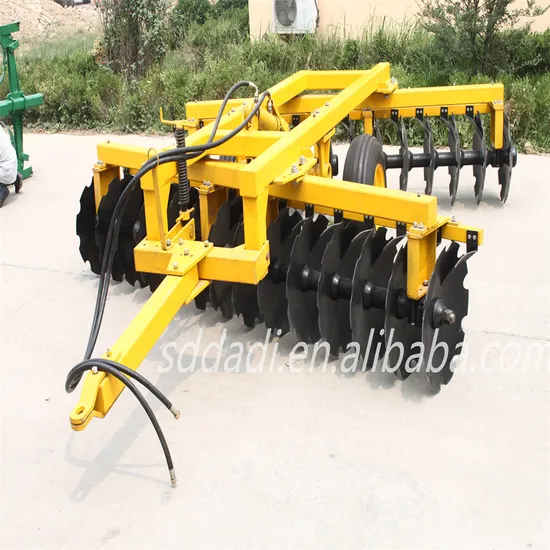

1BZ Series Heavy-Duty Disc Harrow This series hydraulic heavy-duty offset disc harrow is suitable for cleaning away stumps of plants before plowing and for breaking and loosening clods after plowing on virgin land, the land with sticky and heavy soil and cultivated land. It has the capability of pulverizing and penetrating into the soil. All these satisfy the agricultural requirements of fine cultivation. The heavy-duty harrow is national series products, it has high degree of generalization,serialization,standardization. The implements uses tubular steel pipe as the main part of the integral style frame construction. It has the characteristics of simple mechanism,well organized technology and good rigidity. The harrow is also fitted with rubber wheel that can be hydraulically lifted and lowered for transportation. It is easy to transport and change direction on the edge of fields. The good performances raises the productivity and service life of the harrow. The bearings of the heavy-duty harrow uses the sealed rolling bearing with spherical surface and internal square hole, the resistance of trailing is small and it is easy to use,maintenance and serve. This heavy-duty disc harrow is one of the most advanced agricultural implements and can be fitted with tractors or wheel tractors that have hydraulic output. Specifications:
1,Heavy disc blades,high hardness, good wear resistance and strong elasticity after heat treatment 2,The sealed rolling bearing with spherical surface and internal square hole, strong wear-resistance 3,Hydraulic lifting and supporting rubber wheel, control the depth of working and clear away a jam. 4,Steel frame,well selected welding procedure and high quality. The whole machine adopts combine structure which is convenient for disassembly and replacement. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
