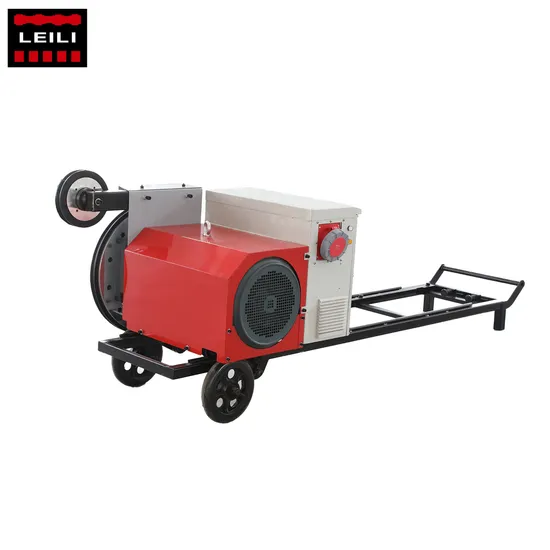

37kw Permanent Magnet Electric Wire Saw Machine for Concrete Cutting

Product Description

1.Product Description
Leill's electric construction wire saw machine are widely used in construction demolition, metro and bridge, etc.
Features:
-Permanent magnet motor gives constant power and torque;
-Thanks to the smart control system,fully automatic cutting can be applied during the operation;
-Soft start avoids damage to the wire or machine;
-Perfect power and weight ratio;
-Mechanical stopping track,overload protection ,overheat protection and phase loss protection;
-Zero maintenance;
2.Technical Information

Model	Tiger-37A
Driving	Electric
Tension	Electric
Main Motor	37Kw-Permanent Magnet Motor
Traveling Motor	0.4KW
Rotation Speed	850r/min
Wire Sawing Speed	24m/s
Traveling Speed	0-104m/h
Diameter of Driving Wheel	500mm
Diameter of Guiding Wheel	200mm
Rated Voltage	380V / 415V
Dimension	2200mm*800mm*880mm
Net weitht	340KG

3.Packing,Lead time and Delivery 1, Packing: wooden case;
2,Lead time:
5 days for samples
10-15days for batch orders.
3,Delivery :By Air Cargo or by ship.
4.Exhibition
5.Company IntroductionSince established in 2009, Shjiazhuang LEILI Tools Co .,Ltd has been substantially developing to be one of the leading manufacturers of diamond wire and equipment in China. Up to 2019, LEILI reached production capacity 50,000 meters of wire saw and 60 sets of equipment per month, through the unremitting endeavor of all 120 staffs. LEILI has abundant manufacturing experience and excellent R&D team. For years, LEILI has been devoting itself to research and develop diamond wire saw and related equipment, in order to provide global customers with products and service of safety, efficiency and stability. 6.What Are We Focus On
- SAFE
LEILI always put safety as the first consideration. Our diamond wires use injected synthetic rubber and springs for the assembly. The synthetic rubber used our own research and development high quality rubber for reinforcement, which has a strict quality control system and testing method, that could increase the safety classes of wire saw , as well as minimize the risk of uneven
wear to the wire beads.
-EFFICIENT
LEILI wire saw has excellent formula design, thoughtful customized service and high quality manufacturing process and equipment, So as to ensure the wire saw cutting efficiency and stability.
-STABL
With more than 10 years of industry experience. LEILI have accumulated extensive knowledge of diamond bead design and quality control throughout the years. AIlI of these make our products have a stable quality assurance, has been recognized by the majority of customers.
Your working performance is always our concern.

---
