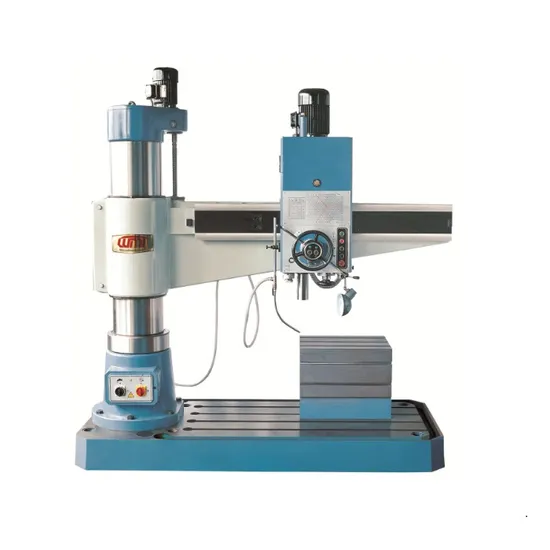

radial drill machine Hydraulic Clamping Z3040 Cheap Radial Drilling Machine

Product Description

Product Description
Radial drill machine for metalworking:
Main Specification:

Model	Z3040/12	Z3040/14
Max drilling capacity	40mm
Distance from spindle nose to column	300-1200/1400mm
Spindle horizontal travel	900/1100mm
Spindle vertical travel	300-1240mm
Spindle taper	MT4
Spindle travel	210mm
Radial arm lifting speed	1.26m/min
Radial arm lifting distance	650mm
Drilling depth per circle	140mm
Spindle speed	80-1200r/min
Spindle speed series	6
Range of spindle feed	0.10-0.30mm/r
Spindle feed series	3
Main motor power	1.5kw
Lifting motor power	0.75kw
Hydraulic clamping motor power	0.55kw
Coolant pump power	40w
Table size	550x350x350mm
Net weight	1500kgs/1700kgs
Oversall size	1700/1900x800x2200mm

Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours. Company Profile
WMT CNC Industrial Co., Ltd. is located in the southwest of the Yangtze River in Anhui Province with a famous Buddhist shrine in the north of Jiuhua Mountain. The transportation facilities here are very convenient, directly linked with many metropolis like Shanghai, Beijing and Shenzhen via the highway, international airport, and high-speed railway.
WMTCNC company focuses on the research and development, manufacturing, sales and service of various CNC machine tools. Our products are widely used in the processing of molds and parts for products in the aerospace, automotive, steel, petrochemical, and electronics industries. The products are exported to more than 50 countries and regions around the world with good reputation always.
Our main products are Vertical machining centers, Gantry machining centers, CNC milling machines, CNC lathes, Turning machining centers, common drilling and milling machines, milling machines, lathes, and DIY machine tools, etc.
Main functional components of machines are supplied by world-renowned brands such as Japan, Taiwan and Germany. The concept of combining "craftsman spirit" and "intelligent manufacturing" runs through the research and development, production and sales of various products, relying on advanced processing And testing equipment, scientific management to ensure our products with the high precision, high rigidity and high efficiency. Our machines are the trustworthy product for mold and metal processing.
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
