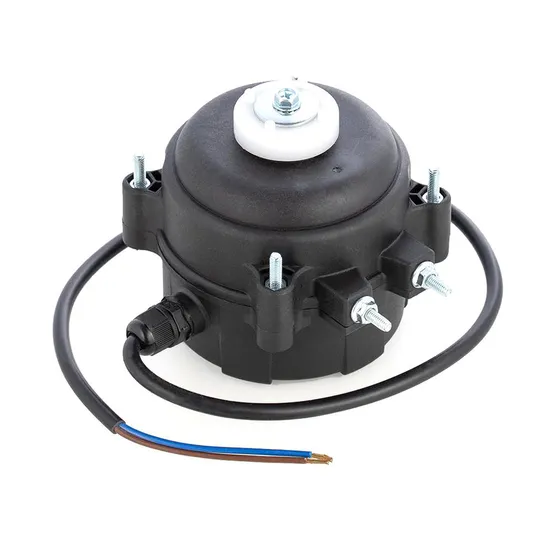

Refrigerator Parts Cooling Freezer Condenser Evaporator Fan Permanent Magnet Ec Brushless Motor

Product Description

1.SPECIFICATION
ECM Motor AC EC Shaded Pole ECM 7108 7112 7120 Q EC Shaded Pole freezer fan Motor with fan blades for Refrigeration

Technical datas
Nominal data		Voltage	Frequency	Speed	Output capacity	Perm.amb. temp	Dimensions
Type	Features	V	Hz	r/min	W	ºC	a	b	C
7108	Standard CW&CCW 2 Speeds	AC115 or 230	50/60	500-2300	5	-30ºC-50ºC	83	43.5	32.5
		AC100-240	50/60	500-2300	5	-30ºC-50ºC	74	43.5	32.5
7112	Standard CW&CCW 2 Speeds	AC115 or 230	50/60	500-2300	15	-30ºC-50ºC	87	43.5	32.5
	Vari-speed	DC24		500-2300	15	-30ºC-50ºC
	Standard CW&CCW 2 Speeds	AC100-240	50/60	500-2300	15	-30ºC-50ºC	78	43.5	32.5
7120	Standard CW&CCW 2 Speeds	AC115 or 230	50/60	500-2300	22	-30ºC-50ºC	95	43.5	32.5
	Vari-speed	DC24		500-2300	20	-30ºC-50ºC

2. DESCRIPETION
The newest generation of ECM series motors are designed with advanced electronic control technology, make the motor efficiency greatly increased, the external structure design of ECM series motors will maintain the similar external structure design as YZF series motors, motor accessories such as fan blades, rings or grids, brackets for ECM motors are the same as YZF series* , therefore ECM series motors can completely replace the YZF series motors without any other changes.
Comparing with YZF series motors, ECM motors display an obvious advantage in energy saving, saving up to 70%, it can greatly reduce the electricity cost for motor operation and carbon dioxide emissions.
Not only that, due to the heating of ECM series motors themselves are very low, it would lead to the entire refrigeration system works more efficient and make motor running more stable and reliable.
Main features
High safety class
ECM motors adopt thermoplastic for housing and the protection level has achieved class II, therefore the earth conductor will be unnecessary and the cost will be reduced.
High protection class IP65
Enclosed motor design will have a better moisture-proof effect and make it possible to work in the high humidity and dust environment.
High reliability
The dual-chamber design(Patented) leads the motor can be effectively separated from electronic control area in order to avoid dust and humidity enter into the cavity of control board.
3.FACTORY WORKSHOP




FAQ 1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: Quality problems?
A: lf there is any quality problem or question, we could offer technical support or return service.
3. Q: Is there any sales promotion product?
A: To meet our competitive global market, we often take sales promotion product for our clientsPlease feel free to contact us at any time
4. Q: How to assure the client is making profit from our products?
A: Our products have high rate of quality and price, we believe that most of our clients are making aconsiderable profit.
5. Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours, but holidays are excepted.

---
