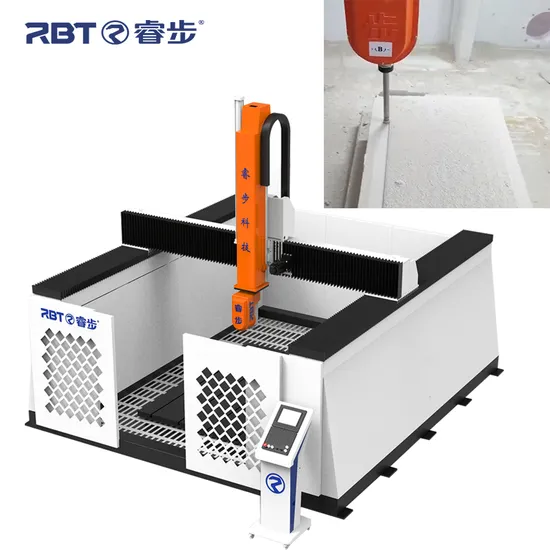

Rbt 5-Axis CNC Machining Centers for High-Volume Trimming of Composite

Product Description

Product Description
Product Parameters
1,Truss type with protection room structure, fixed workbench, semi-enclosed protection design, to meet the equipment production and processing safety protection and debris spillover prevention, the overall floor drain dust collection device with high-performance dust collector external processing debris collection;
2,The truss double Y, X, Z, C, B six axes form a double swing head type five-axis machining body;
3,When machining, the workpiece table does not move, the five coordinate axes drive the tool movement, and the machining around the workpiece can realize the five-axis linkage three-dimensional movement to meet the processing of the pentahedron and any surface;
4,the equipment combines power, speed and accuracy, can be selected dust collection, automatic tool change belt tool library and RTCP and other functions;
5,the actual configuration of the equipment see the technical plan, equipment travel can be customized according to different customer needs.

content	parameter	content	parameter
name	non-metal truss type 5 axis cnc machine	brand	rbt
model	rh-h5-2115-z08	voltage	3-380v
x/y/z axis travel	2100*1500*800mm	machine rated power	16.3kw~30.8kw
c/b axis travel	±540°/±120°	weight	7000kg
spindle power	5.5kw~20kw	dimension	L4380*W3000*H3400mm
control system	taiwan syntec	machine origin	guangdong /fujian

exhibition
Packaging & Shipping
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.2.Shipping : Container transport.
CE

---
