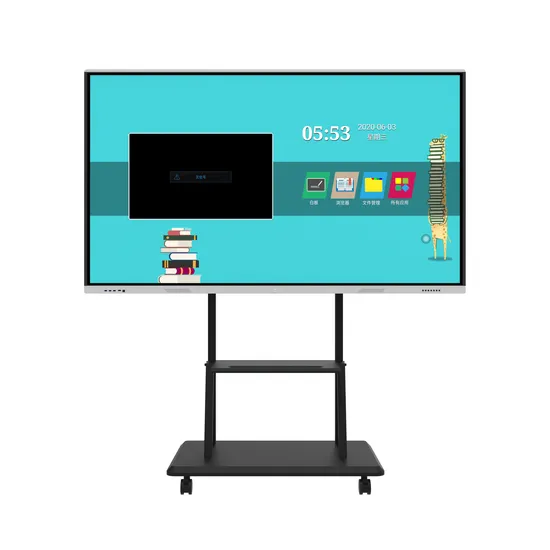

65 Inch 4+32g Infrared Interactive Whiteboard for Education or Meeting

Product Description

65 inch Infrared Interactive Smartboard

Appearance and smart touch: 12mm frame design with ultra-narrow sides and three equilateral sides, and the appearance is made of frosted material. The front detachable high-precision infrared touch frame has a touch accuracy of ±2mm, supports 20 touch points, and has high sensitivity. With OPS interface, dual systems can be expanded. Commonly used interface front, speaker front, with digital audio output. Support full-channel touch, automatic switching of touch channels, and gesture recognition. Intelligent control, the remote control integrates computer shortcut keys, intelligent eye protection, one-button switch.
Whiteboard writing: 4K writing whiteboard, handwriting 4K ultra-high-definition resolution, delicate strokes. High-performance writing software, which supports single-point and multi-point writing, increases the effect of stroke writing, etc., supports inserting pictures on the whiteboard, adding pages, erasing on the gesture board, zooming in, zooming out, roaming, scanning codes and sharing, available on any interface in any channel Annotate and other functions. The whiteboard page can be zoomed indefinitely, can be undone and restored at will, and the number of steps is not limited;
Conference training: Built-in WPS, welcome interface, and other efficient conference software. Built-in 2.4G/5G dual-band, dual network card, support wireless Internet access and WIFI hotspot at the same time. Wireless co-screening, support multi-channel co-screening, realize functions such as mirroring anti-control, remote snapshot, video, music, document sharing, picture screenshot, wireless remote control confidential point casting, etc.;

Display parameters	Effective display area	1428.48 (H) × 803.52 (V) (mm)
	Zoom	16:9
	brightness	300 nits
	Contrast
	color	10-bit true color (16.7M)
	Backlight type	DLED
	Maximum viewing angle	178°
	Resolution	3840 * 2160
Machine parameters	Video format	PAL/NTSC/SECAM
	Audio format	DK/BG/I
	Audio output power	2X10W
	Power consumption	≤250W
	Standby power consumption	≤0.5W
	Machine life	30,000 hours
	Input Power	100-240V, 50/60Hz
	Overall size	1485 (length) x 887.58 (height) x 92.0 (thickness) mm
		1485 (length) x 887.58 (height) x 126.6 (thickness) mm (including bracket)
	Package Size	1626 (length) * 1060 (height) * 200 (thickness) mm
	net weight	38 KG
	Gross Weight	48 KG
	working environment	Working temperature: 0ºC ~ 50ºC; working humidity: 10%RH ~ 80%RH;
	Storage Environment	Storage temperature: -20ºC ~ 60ºC; Storage humidity: 10%RH ~ 90%RH;
	Input Port	Front port: USB2.0*1 USB3.0*1 HDMI IN*1 TOUCH OUT*1
		Rear ports: HDMI*2, USB*2, RS232*1, RJ45*1, 2*AV input
	Output Port	1*AV output; 1*coaxial terminal; HDMI OUT (optional)
	WIFI	5G module (compatible with 2.4+5G)
	Bluetooth	support
Android system parameters	CPU	Dual-core A73 and dual-core A53 1.5GHZ
	GPU	G51MP
	RAM	3G
	FLASH	32G
	Android version	Android 8.0
	OSD Language	Chinese English
OPS computer parameters	CPU	I3/I5/I7 optional
	Memory	4G/8G/16G optional
	Solid-State Drive (SSD)	128G/256G/512G optional
	operating system	Window7 /Window10 optional
	interface	Depends on motherboard specifications
	WIFI	Support 802.11 b/g/n
Touch frame parameters	Touch Type	Infrared touch
	Installation	Built-in front removal
	Touch screen sensing method	Finger, writing pen, or other non-transparent objects ≥ Ø8mm
	Resolution	32767*32767
	Touch system communication port	USB 2.0
	responding speed	≤8 ms
	positioning accuracy	≤±2mm
	Light resistance	88K LUX
	Multi-touch	20-point touch
	Number of touches	The same location more than 60 million times
	Touch Support Operating System	WIN7,WIN8,WIN10,LINUX,Android,MAC
Camera parameters	Pixel	800W ; 1200W; 4800W optional
	Image Sensor	1/2.8 inch CMOS
	mirror head	Fixed focus lens, effective focal length 4.11mm
	Viewing angle	Horizontal viewing angle 68.6 degrees Diagonal 76.1 degrees;
	Main camera focus mode	focus
	Video Output	MJPG YUY2
	Maximum frame rate	30
	drive	No need to drive
	Video resolution	3840 * 2160
Microphone parameters	Microphone Type	Microphone array
	Number of wheat heads	6 arrays; 8 arrays optional
	Sensitivity	38db
	Signal-to-Noise Ratio	63db
	Pickup distance	8 meters
	Number of sampling bits	16/24bit
	Sampling Rate	16kHz-48kHz
	drive	Win10 driver-free
	echo cancellation	support
appendix	remote control	Quantity: 1 piece
	power cable	Quantity: Standard 1.8m 1 piece
	touch pen	Quantity: 1 piece
	Warranty Card	Quantity: 1 serving
	Certificate	Quantity: 1 serving
	wall mount	Quantity: 1 set

1.What touch screen technology does CJTOUCH monitors use?
IR/PCAP/SAW/Resistive available
2. What sizes are available for your products?
8"~27" SAW Touch Screen, 10.4"~96" IR Touch Screen, 7"~65" PCAP Touch Screen, 7"~22" Resistive Touch Screen, 15"~80" Capacitive Touch Foil, 8"~27"SAW Touch Monitor, 10.4"~65" IR Touch Monitor, 12.1"~21.5" Resistive Touch Monitor, 10.1"~32" PCAP Touch Monitor, 10.1"~98" All in One Touch PC, Up to 96" LED/LCD Kits, 10"~96" LCD Panel.
3. What input options do the Touch monitor's come with?
Standard touch screen input comes with RS232 and USB. The video signal inputs come with VGA, DVI, HDMI and optional Display port.
4. Does CJTOUCH make custom designs to fit my application?
Yes, we work with our customers to design a perfect and functional product based on their needs. Engineers and technicians are available to work with customers every step of the way.
5. What is the CJTOUCH monitor screen resolution?
Touch screen monitors 21.5 inches or larger have a High Definition Native Resolution of 1920 X 1080.

---
