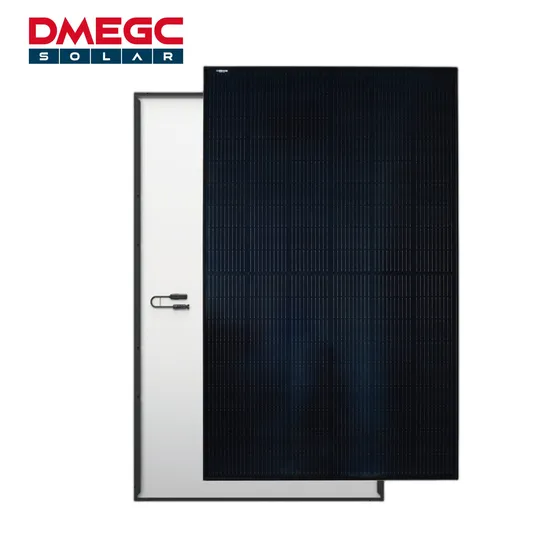

Tier1 Brand Dmegc 400W/410watt Solar Panels with CE/TUV for Solar Energy System

Product Description

*Aesthetics:
Ultimate look of black modules, perfectly matching the owner's aesthetic pursuit
*Quality:
Over 40 years of manufacturing experience in house wafer, cell and module
*Guarantee:
Warranty comes from one of the most financially healthy PV providers
*Service:
Customer-oriented and local Services
12 Years product warranty
25 Years power output warranty
Product Parameters

Module Type	DM395M10-B54HBB		DM400M10-B54HBB		DM405M10-B54HBB		DM410M10-B54HBB
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Pm(W)	395	317	400	321	405	325	410	329
Imp(A)	13.10	10.54	13.19	10.61	13.28	10.68	13.37	10.75
Vmp(V)	30.18	30.11	30.35	30.28	30.52	30.45	30.69	30.62
Isc(A)	13.50	10.75	13.59	10.82	13.68	10.89	13.77	10.96
Voc(V)	37.09	36.77	37.21	36.88	37.33	37.00	37.45	37.12
Module Efficiency	20.23%		20.48%		20.74%		21.00%
Pm Tolerance 0/+3% Bifaciality:70%± 10% STC:AM1.5 1000W/nf 25°C NOCT:AM1.5 800W/nf 20°C 1m/s Measurement uncertainty:±3%

Mechanical Data
Cell Type	P type Mono-crystalline
Cell Arrangement	108(6x18)
Module Dimensions	1722x1134x30mm
Weight	25.1kg
Module Structure	Glass/Encapsulant/Glass
Glass Thickness	2.0mm+2.0mm
PV module classification	Class II
Junction Box Rating	IP67/IP68
Cables	4mm2/1100mm or Customized Length
Connector Type	MC4/MC4 Compatible(IOOOV) EVO2/EVO2 Compatible(1500V)

Temperature Characteristics
Nominal Operating Cell Temperature(NOCT)		42±3°C
Temperature Coefficient of Isc		+0.0448%/°C
Temperature Coefficient of Voc		-0.246%/°C
Temperature Coefficient of Pmax		-0.330%/°C

Leading manufaturaing
Certifications
Company Profile
Dinghui New Energy(DeZhou) Co., Ltd. was established in 2017, a photovoltaic enterprise integrating R&D, production, sales of solar products, which is committed to the overall solution of distributed photovoltaic system, providing consulting, design, construction, operation and maintenance and other overall services.
Top company's products include solar cells, solar panels, solar off-grid system schemes and other related application products. With excellent product quality, our products have got ISO, CQC, CE, IEC, SGS and other international certifications and have been exported to many countries and regions.
Packaging & Shipping

Packaging
Pallet dimensions	1770x1140x1250mm
Container	40'HQ
Pieces per Pallet	36
Pieces per Container	936

Standard exporting Wooden pallets and cartons: After placing the order and loading, we will provide you with a flash report.
FAQ
1. Q: Why do I choose your company?
A: We hold the idea that we provide reliable products and valuable services to help our customers have a growing and profitable business. Thanks giving is the core culture of our company!
2. Q:Can you get the solar panel customized for us ?
A: Of course, brand name, solar panel color, designed unique patterns available for customization.
3. Q: What kind of service can you provide once we place the order?
A: After we received the order, we will arrange the production, our QC members will control the quality from the raw material till the final products. We can arrange the shipment by sea. Meanwhile, as our staff worked in this field in many years, we could also can provide you one-stop solution for solar energy system in a perfect way.
4. Q: Can the price of solar products be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5. Q:Whether technical support is provided?
A: Yes, we can provide remote guidance installation and off grid system support.

---
