Automatic Running Alternator Starter Test Bench

Product Description

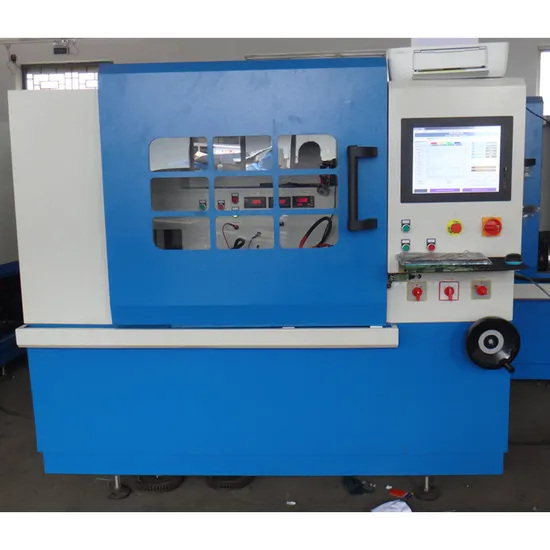

HLD-FQZ-2D model Automatic Running Alternator Starter Test Bench
General introd
uction:
1.It can be used to test Alternators and Starters of various vehicles (Car, Truck, Bus, Tractor, Excavator, etc);
Test Alternator (Generator): 15KW, 0-300A, 12V or 24V, 10000RPM Test item: Speed, Voltage, Current (Load or no-load) Test Starter: 25KW, 0-2000A, 0-200N.M, 12V or 24V Test item: Torque, Voltage, Current (Load or no-load) 2. It is matched with Windows system computer to operate, too see and test process and results directly, it can save & print test results and curves.
Technical parameter:

Model no	HLD-FQZ-2D
Language	English/Spanish, etc
Material	Metal plate
Painting	Powder painting, durable and beautiful
Color	Blue
Voltage	380V 50 Hz 3P
Motor power	15KW
Motor speed	0-3600Rpm
Frequency converter power	15KW
Alternator testing:
Maximum power	15KW
Maximum current	300A
Maximum voltage	90V
External battery	No
Excitation voltage	12V/24V
Speed range	No load:0-12000Rpmad; Load:0-10000Rpm
Load mode	Electronic module (advance)
Motor drive style	Belt connect
Clamp style	Mounting clamp, fasten or loosen with button control, easy to mount or remove
Starter testing:
Maximum Power	25KW
Maximum current	2000A
Maximum torque	200N.m
Test solenoid excitation voltage	12V/24V
Need external battery	12V/24V/48V
Accessories:
Accessory wires, belt, blank plates for starters, fuses, etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance should be paid before delivery (negotiable)
Delivery time	35 days after receiving downpayment
HS code	90312000.90
Packing sizes	1870*1020*1660mm=3.17CBM

Why Choose us:
32 years' design,development and produce experience Professional R&D team Strict QC A good pre-sale and after-sale service Can design and make according to customer's requests Other similar alternatro starter test benches:

---
